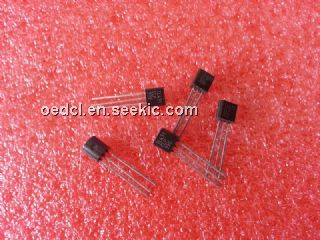

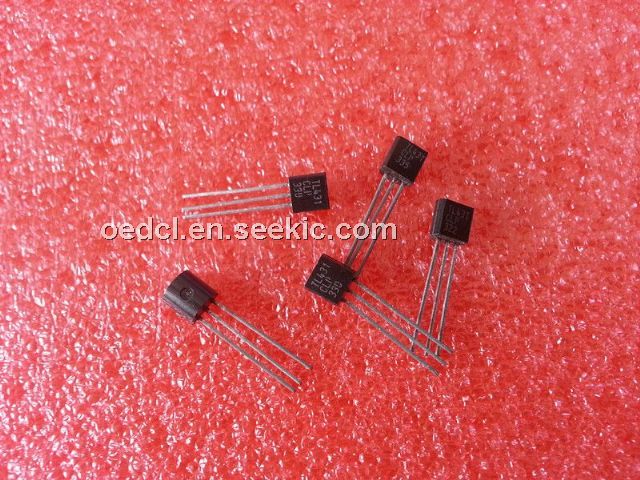

Product Summary
The TL431CLP is a three-terminal adjustable regulator with a guaranteed thermal stability over applicable temperature range. The output voltage may be set to any value between Vref (approximately 2.5 volts) and 36 volts with two external resistor. The TL431CLP has a typical dynamic output impedance of 0.2Ω. Active output circuitry provides a very sharp turn-on characteristic, making these devices excellent replacement for zener diodes in many applications. The TL431CLP is characterized for operation from -0oC to +70℃.
Parametrics
TL431CLP absolute maximum ratings: (1)Cathode voltage VKA: 40 V; (2)Cathode current range (continuous)IK: 100 ~ 150 mA; (3)Reference input current range IREF: 0.05 ~ 10 mA; (4)Power dissipation at 25℃ TO – 92 Package PD: 0.7 W; (5)Junction temperature range TJ: 0 ~ 150℃; (6)Operating temperature range Tg: 0 ~ 70℃; (7)Storage temperature range Tstg: -65 ~ +150℃.
Features
TL431CLP features: (1)Programmable output voltage to 40V; (2)Low dynamic output impedance 0.2Ω; (3)Sink current capability of 0.1 mA to 100 mA; (4)Equivalent full-range temperature coefficient of 50 ppm/oC; (5)Temperature compensated for operation over full rated operating temperature range; (6)Low output noise voltage; (7)Fast turn on respons; (8)TO-92 or SOT-23 and SOT-89 ,SO8packages.

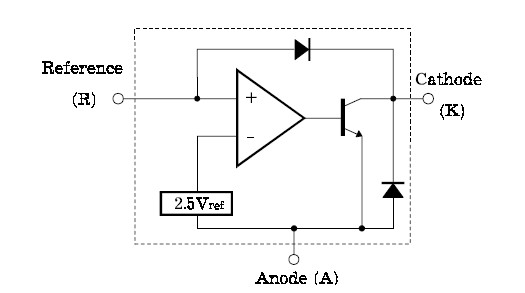

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TL431CLP |
Texas Instruments |
Voltage & Current References Adj Shunt |
Data Sheet |
|
|
|||||||||||||
TL431CLPE3 |
Texas Instruments |
Voltage & Current References Adj Shunt |
Data Sheet |
Negotiable |
|
|||||||||||||
TL431CLPM |
Texas Instruments |
Voltage & Current References Adjustable Precision Shunt Regulator |
Data Sheet |
|
|
|||||||||||||
TL431CLPR |
Texas Instruments |
Voltage & Current References Adj Shunt |
Data Sheet |
|
|
|||||||||||||
TL431CLPG |
ON Semiconductor |
Voltage & Current References 2.5-36V ADJ 1-100mA |
Data Sheet |
|
|
|||||||||||||
TL431CLPME3 |
Texas Instruments |
Voltage & Current References Adjustable Precision Shunt Regulator |
Data Sheet |
Negotiable |
|
|||||||||||||
TL431CLPRAG |
ON Semiconductor |
Voltage & Current References 2.5-36V ADJ 1-100mA |
Data Sheet |
|
|
|||||||||||||
TL431CLPRMG |
ON Semiconductor |
Voltage & Current References 2.5-36V ADJ 1-100mA |
Data Sheet |
|
|
