Product Summary

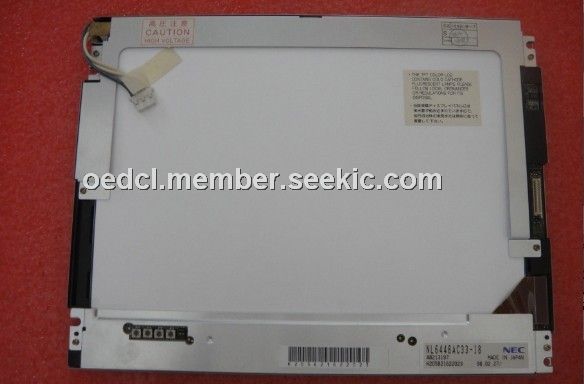

The NL6448AC33-18 is a TFT (thin film transistor) active matrix color liquid crystal display (LCD) comprising amorphous silicon TFT attached to each signal electrode, a driving circuit and a backlight. NL6448AC33-18 has a built-in backlight. Backlight includes long life lamps, which are replaceable. The 26 cm diagonal display area contains 640 × 480 pixels and can display 262144 colors simultaneously. NL6448AC33-18 is suitable for factory automation use, because luminance is higher, and viewing direction is selectable by switching display scan direction.

Parametrics

NL6448AC33-18 absolute maximum ratings: (1)Supply voltage: –0.3 to 6.5 V ; (2)Input voltage: –0.3 to 6.5 V ; (3)Storage temp.: –20 to 60 ℃; (4)Operating temp: 0 to 50 ℃; (5)Humidity: RH≤ 95 % relative humidity when Ta ≤ 40 ℃.

Features

NL6448AC33-18 features: (1)Reverse function (user set up); (2)6-bit digital RGB signals; (3)3.3 V operation (5.0 V available); (4)Data enable function (DE/Fixed mode select: user set up); (5)Smooth polarizer surface (No antiglare treatment); (6)Incorporated edge type backlight (Two lamps, with inverter, bright/dark selectable); (7)Backlight tube replaceable (refer to the tube replace manual for NL6448AC33-18A).

Diagrams

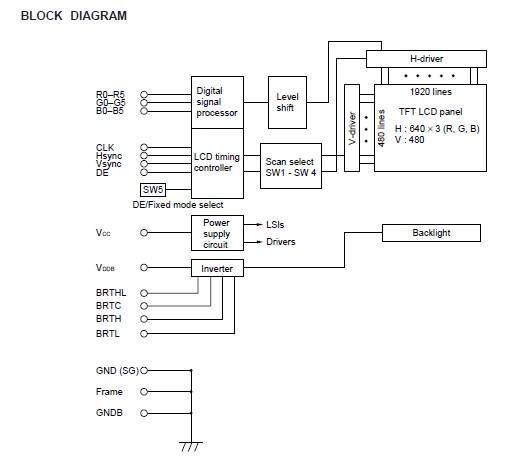

NL6448AC33-18 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
NL6448AC33-18A
NL6448AC33-18A

Other


Data Sheet

Negotiable
