Product Summary

The TIP2955 is a silicon Epitaxial-Base Planar NPN transistor mountend in TO-218 plastic package. It is intented for power switching circuits, series and shunt regulators, output stages and hi-fi amplifiers. The complementary PNP type is the TIP2955.

Parametrics

TIP2955 absolute maximum ratings: (1)VCBO Collector-Base Voltage (IE = 0): 100 V; (2)VCEO Collector-Emitter Voltage (IB = 0): 60 V; (3)IC Collector Current: 15 A; (4)IB Base Current: 7 A; (5)Ptot Total Dissipation at Tc ≤ 25 ℃: 90 W; (6)Tstg Storage Temperature: -65 to 150 ℃; (7)Tj Max. Operating Junction Temperature: 150 ℃.

Features

TIP2955 features: (1)STMicroelectronics preferred salestypes; (2)complementary pnp - npn devices.

Diagrams

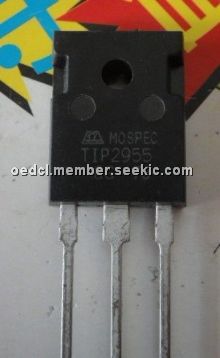

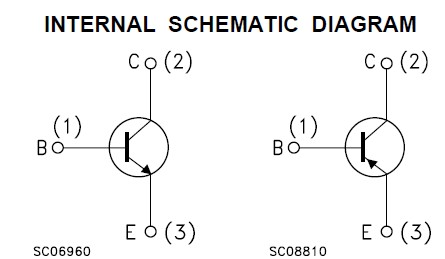

TIP2955 diagram
