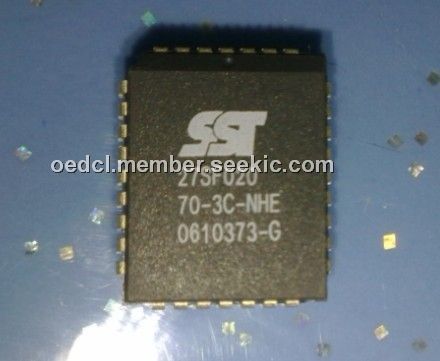

Product Summary
The 27SF020-70-3C-NHE is a 64K x8 / 128K x8 / 256Kx8 CMOS, Many-Time Programmable (MTP) low cost flash, manufactured with SST’s proprietary, high performance SuperFlash technology. The split-gate cell design and thick oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The 27SF020-70-3C-NHE can be electrically erased and programmed at least 1000 times using an external programmer with a 12V power supply. The 27SF020-70-3C-NHE has to be erased prior to programming. The device conforms to JEDEC standard pinouts for byte-wide memories.
Parametrics
27SF020-70-3C-NHE absolute maximum ratings: (1)Temperature Under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)D. C. Voltage on Any Pin to Ground Potential: -0.5V to VDD+0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential: -2.0V to VDD+2.0V; (5)Voltage on A9 and VPP Pin to Ground Potential: -0.5V to 14.0V; (6)Package Power Dissipation Capability (TA = 25℃): 1.0W; (7)Through Hole Lead Soldering Temperature (10 Seconds): 300℃; (8)Surface Mount Solder Reflow Temperature: 260℃ for 10 seconds; (9)Output Short Circuit Current: 100 mA.
Features
27SF020-70-3C-NHE features: (1)Organized as 64K x8 / 128K x8 / 256K x8; (2)4.5-5.5V Read Operation; (3)Superior Reliability; (4)Low Power Consumption; (5)Fast Read Access Time: 70 ns; (6)Fast Byte-Program Operation; (7)Electrical Erase Using Programmer; (8)TTL I/O Compatibility; (9)JEDEC Standard Byte-wide EPROM Pinouts; (10)All non-Pb (lead-free) devices are RoHS compliant.

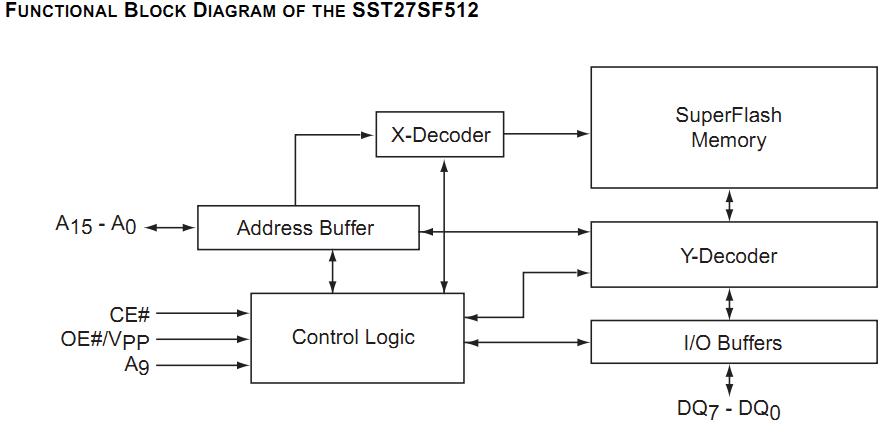

Diagrams
