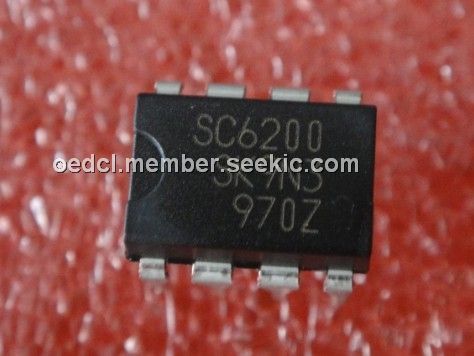

SC6200

multi-purpose LED driver, DIP, -0.3 to +6.0 V, SC6200, Sanken

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~3.00

PartNumber:: SC6200

Brand:: Sanken electric - Sanken | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Pamela's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-13

From Other Seller

Part Number:SC6200
US $1.00 - 3.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

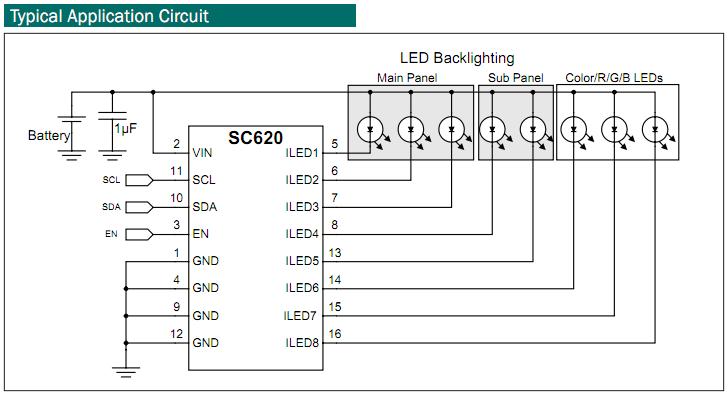

The SC6200 is a multi-purpose LED driver with eight identi-cal, independently controlled current sinks. Each current sink can drive an LED by connecting the LED’s anode to the system power supply and the cathode to the current sink input pin. Any combination of outputs can be enabled or disabled for optimal design flexibility. The applications of the SC6200 include LCD backlighting LED driver, Multicolor and RGB LED driver, General purpose current sink array, General purpose digital output (open-drain) expander and Auto-focus voice-coil driver.

Parametrics

SC6200 absolute maximum ratings: (1)Input Supply Voltage, VIN: -0.3 to +6.0 V; (2)Pin Voltage - All Other Pins: -0.3 to VIN+0.3 V; (3)Operating Ambient Temperature Range, TA: -40 to +85℃; (4)Operating Junction Temperature Range, TJ: -40 to +150℃; (5)Storage Temperature, TSTG: -65 to +150℃; (6)Peak IR Reflow Temperature, TPKG: 260℃; (7)Thermal Resistance - Junction to Ambient, θJA: 39℃/W; (8)ESD Protection Level, VESD: 2kV.

Features

SC6200 features: (1)Eight identical current drivers with independent control; (2)Wide current setting range - 31.25μA to 25mA; (3)3% current matching, 5% accuracy; (4)I2C interface for microprocessor control; (5)I2C slave address 1110 000x; (6)Less than 1μA quiescent current in shutdown; (7)Low dropout voltage: ≤ 150mV; (8)Over-temperature protection; (9)MLPQ-UT-16 package (3mm × 3mm); (10)Ultra-thin 0.6mm maximum package height; (11)Fully WEEE and RoHS compliant.
