Product Summary

The REF43GP is a Low Power Precision Voltage Reference. The REF43GP is a low-power precision reference providing a stable +2.5V output independent of variations in supply voltage, load conditions or ambient temperature. It is suitable as a reference level for 8,10 and 12-bit data acquisition systems, or wherever a stable, known voltage is required. Tight output tolerances and low thermal drift are assured by zener-zap trimming of both output voltage and its temperature coefficient. A unique curvature correction circuit reduces the thermal curvature which is characteristic of many previous bandgap references.

Parametrics

REF43GP absolute maximum ratings: (1)Supply Voltage: 40V; (2)Output Short-Circuit Duration: Indefinite; (3)Operating Temperature Range: -40℃ to +85℃; (4)Storage Temperature Range: -65℃ to +175℃; (5)Junction Temperature Range: -65℃ to +175℃; (6)Lead Temperature (Soldering, 10 sec): 300℃.

Features

REF43GP features: (1)+2.5 Volt Output: ±0.05% Max; (2)Low Temperature Coefficient: 10ppm/℃ Max; (3)Excellent Regulation Load Regulation: 20ppm/mA Max; (4)Line Regulation: 2ppm/V Max; (5)Supply Current: 450μA Max; (6)Temperature Voltage Output: +1.9mV/℃; (7)Operating Voltage Range: +4.5V to +40V; (8)Extended Industrial Temp Range: -40℃ to +85℃; (9)Available in Die Form.

Diagrams

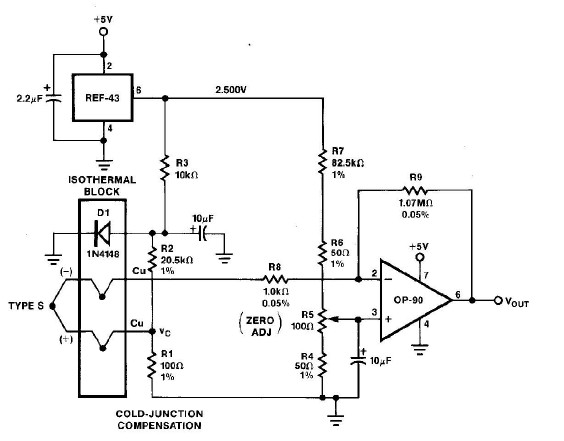

REF43GP block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
REF43GP
REF43GP
Analog Devices Inc
IC VOLT REF PREC LP 2.5V 8DIP
Data Sheet
Negotiable
REF43GPZ
REF43GPZ

IC VREF SERIES PREC 2.5V 8-PDIP
Data Sheet
0-1: $5.30
1-10: $4.77
10-25: $4.35
25-100: $3.93
100-250: $3.61
250-500: $3.29
500-1000: $2.87
1000-2500: $2.83
