Product Summary
The EN29LV160AB-70TCP is a 16-Megabit, electrically erasable, read/write non-volatile flash memory, organized as 2,097,152 bytes or 1,048,576 words. Any byte can be programmed typically in 8μs. The EN29LV160AB-70TCP features 3.0V voltage read and write operation, with access times as fast as 70ns to eliminate the need for WAIT states in high-performance microprocessor systems. The EN29LV160A has separate Output Enable (OE#), Chip Enable (CE#), and Write Enable (WE#) controls, which eliminate bus contention issues. The EN29LV160AB-70TCP is designed to allow either single sector or full chip erase operation, where each sector can be individually protected against program/erase operations or temporarily unprotected to erase or program. The device can sustain a minimum of 1,000K program/erase cycles on each sector.
Parametrics
EN29LV160AB-70TCP absolute maximum ratings: (1)Storage temperature: -65 to +125 °C; (2)Plastic packages: -65 to +125 °C; (3)Ambient temperature with power applied: -55 to +125 °C; (4)Output short circuit current1: 200 mA; (5)Voltage with respect to ground, A9, OE, Reset 2: -0.5 to +11.5 V; All other pins 3: -0.5 to Vcc+0.5 V; Vcc: -0.5 to +4.0 V.
Features
EN29LV160AB-70TCP features: (1)3.0V, single power supply operation: Minimizes system level power requirements; (2)High performance: Access times as fast as 70 ns; (3)Low power consumption (typical values at 5 MHz): 9 mA typical active read current; 20 mA typical program/erase current; Less than 1 μA standby current; (4)Flexible Sector Architecture: One 16-Kbyte, two 8-Kbyte, one 32-Kbyte, and thirty-one 64-Kbyte sectors (byte mode); One 8-Kword, two 4-Kword, one 16-Kword and thirty-one 32-Kword sectors (word mode); (5)Sector protection: Hardware locking of sectors to prevent program or erase operations within individual sectors.

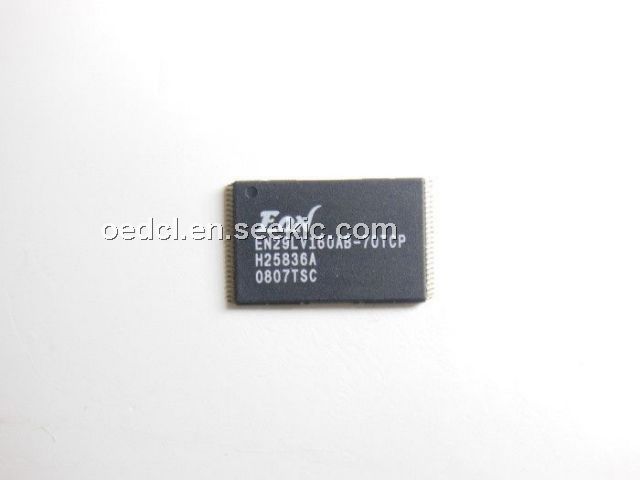

Diagrams
