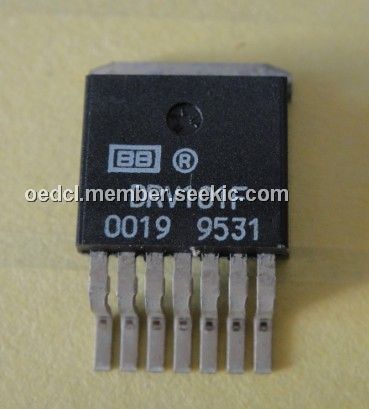

DRV101F

PWN solenoid/valve driver, 60V, 10s, 24kHz, TO-263

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~5.00

PartNumber:: DRV101F

Brand:: Burr-Brown Corporation - BB | Pack: TO | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Pamela's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-16

From Other Seller

Part Number:DRV101F
US $1.00 - 5.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

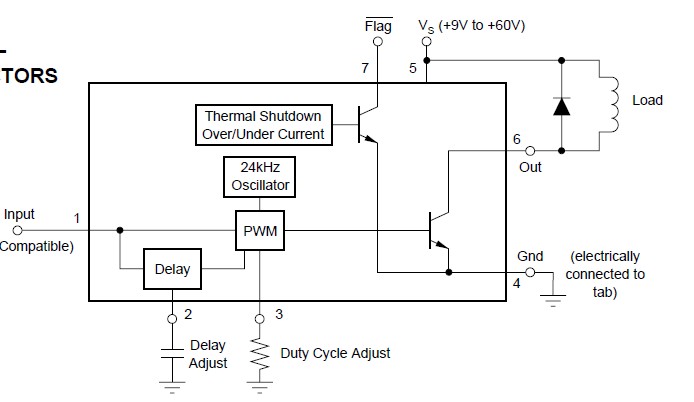

The DRV101F is a PWN solenoid/valve driver. The DRV101F is a low-side power switch employing a pulse-width modulated (PWM) output. Its rugged design is optimized for driving electromechanical devices such as valves, solenoids, relays, actuators, and positioners. The DRV101F is also ideal for driving thermal the DRV101F such as heaters and lamps. PWM operation conserves power and reduces heat rise, resulting in higher reliability. In addition, adjustable PWM allows fine control of the power delivered to the load. Time from dc output to PWM output is externally adjustable.

Parametrics

DRV101F absolute maximum ratings: (1)Supply Voltage, VS: 60V; (2)Input Voltage: –0.2V to VS; (3)PWM Adjust Input: –0.2V to VS; (4)Delay Adjust Input: –0.2V to VS (24V max); (5)Operating Temperature Range: –40℃ to +125℃; (6)Storage Temperature Range: –65℃ to +150℃; (7)Junction Temperature: +150℃; (8)Lead Temperature (soldering, 10s)(2): +300℃.

Features

DRV101F features: (1)high output drive: 2.3A; (2)wide supply range: +9V to +60V; (3)complete function; (4)pwm output; (5)Interna 24kHz Oscillator; (6)DigitaControInput; (7)Adjustable Delay and Duty Cycle; (8)Over/Under Current Indicator; (9)fully protected; (10)ThermaShutdown with Indicator; (11)InternaCurrent Limit; (12)packages: 7-Lead TO-220 and 7-Lead; (13)Surface-Mount DDPAK.
