Product Summary

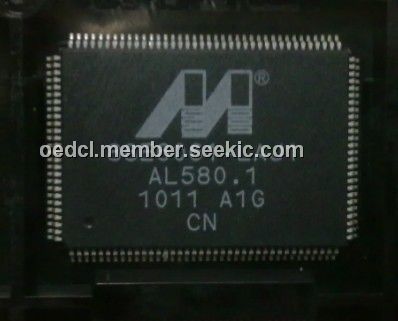

The 88E6061-LAJ1 is a marvell link street 100 Mbps Soho switch. The 88E6061-LAJ1 low power Fast Ethernet (FE) switch provides industry-leading functionality and price-performance ratio for the cost-sensitive Small OfTce/Home OfTce (SOHO) gateway/switching market and enterprise desktop switching market. The Link Street 88E6061-LAJ1 is a 7-port Quality of Service (QoS) switch integrating a high-performance switching fabric with four priority queues, a high-speed address look-up engine, Tve 10/100 Ethernet digital PHY ports, two MII ports, seven independent Media Access Controllers(MACs), Virtual Cable Testera (VCT) technology for advanced cable diagnostics, 1Mb of memory, and Spanning Tree support.

Features

88E6061-LAJ1 features: (1)Single-chip integration of a 7-port FE QoS switch; (2)Five integrated 10/100 Ethernet PHY ports and two MII ports. Two of the PHY ports can be conTgured as copper or Tber. Multi-mode MII interfaces; (3)Virtual Cable Testera(VCT) technology; (4)Automatic MDI/MDIX crossover for 100BASE-TX and 10BASE-T ports.

Diagrams

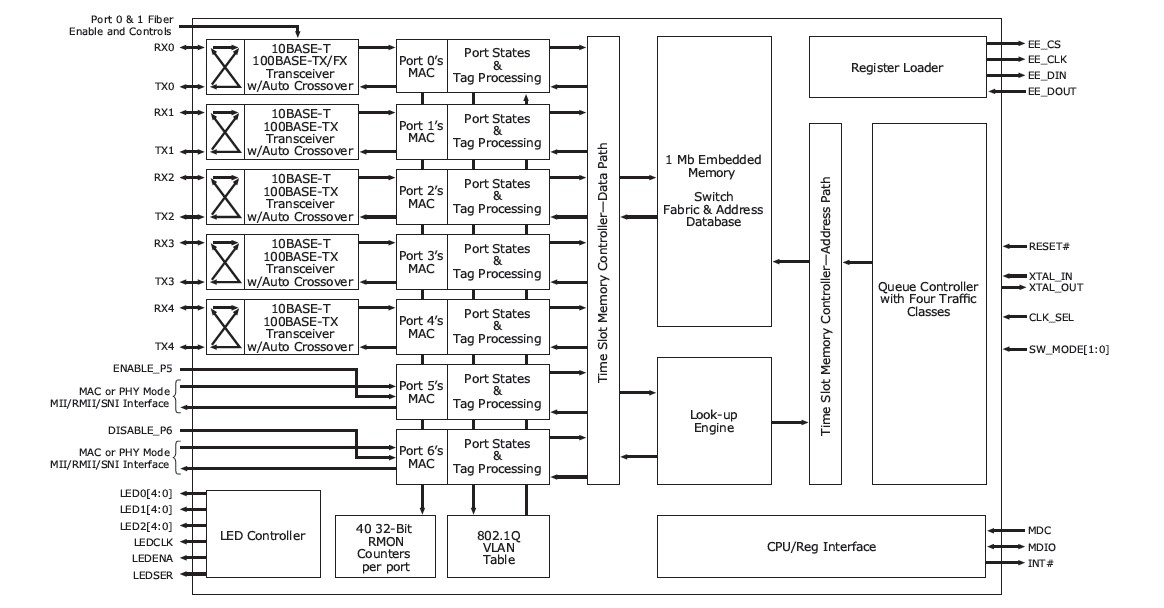

88E6061-LAJ1 block diagram
