Product Summary
The AT22V10L is a CMOS high performance EPROM-based programmable logic device (PLD). Speeds down to 15 ns and power dissipation as low as 12 mA are offered. All speed ranges are specified over the full 5 V ±10% range. All pins offer a low ±10 mA leakage. The AT22V10L provides the optimum low power CMOS PLD solution, with low DC power (8 mA typical) and full CMOS output levels. The AT22V10L significantly reduces total system power and enhances system reliability. Full CMOS output levels help reduce power in many other system components. The AT22V10L incorporate a variable product term architecture. Each output is allocated from eight to 16 product terms, which allows highly complex logic functions to be realized.
Parametrics
AT22V10L absolute maximum ratings: (1)Temperature under bias: -55℃ to +125; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to ground: -2.0 V to +7.0 V(1); (4)Voltage on input pins with respect to ground during programming: -2.0 V to +14.0 V(1); (5)Programming voltage with respect to ground: -2.0 V to +14.0 V(1); (6)Integrated UV erase dose: 7258 W·sec/cm2.
Features
AT22V10L features: (1)High speed programmable logic device: 15 ns max propagation delay; 5 V ±10% operation; (2)CMOS and TTL compatible inputs and outputs 10 mA leakage maximum; (3)Reprogrammable - tested 100% for programmability; (4)High reliability CMOS technology: 2000 V ESD protection; 200 mA latchup immunity; (5)Full military, commercial and industrial temperature ranges; (6)Dual-in-line and surface mount packages.

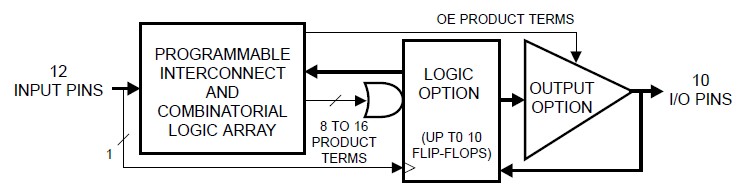

Diagrams
