Product Summary

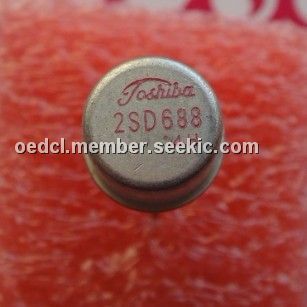

The 2SD688 is a silicon NPN transistor. It is suitable for low frequency medium power amplifier and medium speed switching applications, pulse motor drive, relay drive and hammer drive applications.
Parametrics
2SD688 absolute maximum ratings: (1)VCBO: 100V; (2)VCEO: 100V; (3)VEBO: 10V; (4)IC: 1.5A; (5)IE: -1.5A; (6)PC: 0.8W; (7)Tj: 175℃; (8)Tstg: -65 to 175℃.
Features
2SD688 features: (1)hFE=1000(min) (VCE=2V, IC=1A); (2)VCE(sat)=1.5V (max) (IC=1A); (3)complementary to 2SB678.

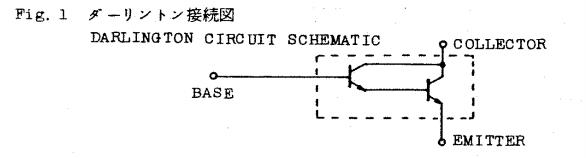

Diagrams
 |
