Product Summary

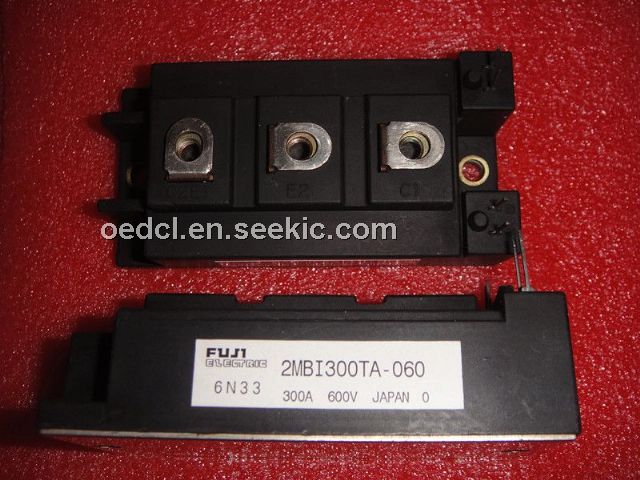

The 2mbi300ta-060 is an IGBT module.
Parametrics
2mbi300ta-060 absolute maximum ratings: (1) Collector-Emitter voltage VCES: 600V (Ic=1mA) ; (2) r voltage VGES: ±20V; (3) Collector current IC: 300A (Duty=100%) ; 600A (1ms, 1ms) , 300A (IF, Duty=75%) ; (4) Collector Power Dissipation Pc: 860W (1 device) ; (5) Junction temperature Tj: 150°C; (6) Storage temperature Tstg: -40 to +125°C; (7) Isolation voltage: 2500V (AC: 1 min) .
Features
2mbi300ta-060 features: (1) Zero gate voltage Collector current ICES: 2mA (VGE=0V, VCE=600V) ; (2) Gate-Emitter leakage current IGES: 400nA (VCE=0V, VGE=±20V) ; (3) Gate-Emitter threshold voltage VGE (th) : 6.2 to 7.7V (VCE=20V, IC=300mA) ; (4) Collector-Emitter saturation voltage VCE (sat) : 1.85V (VGE=15V, chip) , 2.1 to 2.4V (Ic=300A, terminal) ; (5) Allowabe avalanche energy during short circuit cutting off (Non-repetitive) PAV: 170mJ (Ic > 600A, Tj = 125°C) .

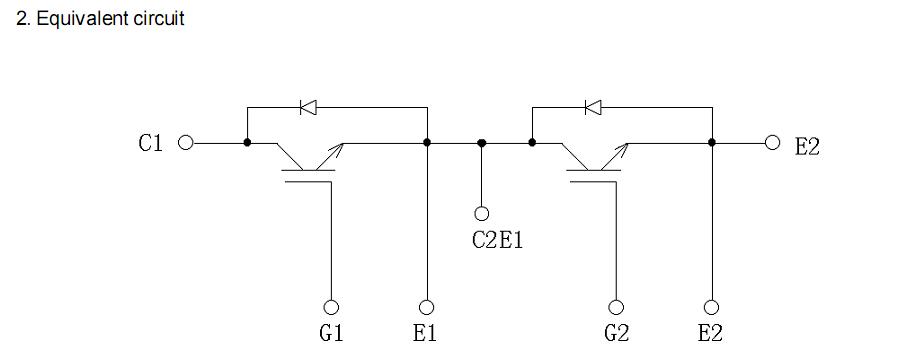

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI300TA-060 |
Other |
|
Data Sheet |
Negotiable |
|
||||
