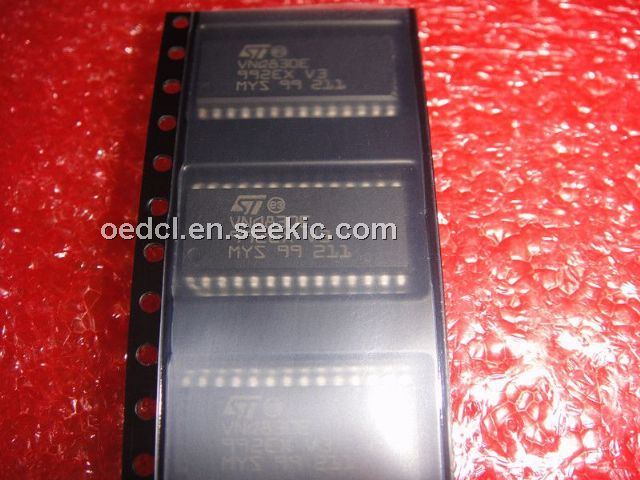

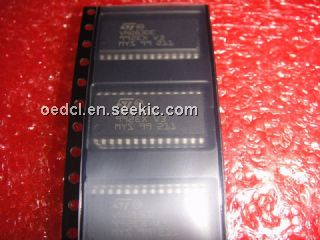

VNQ830E, quad channel high side driver, 41 V, 200 mA, 6.25 W, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	2.00 / Piece
11 ~ 100 :	1.80 / Piece

PartNumber:: VNQ830E

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-04

From Other Seller

Part Number:VNQ830E
US $1.80 - 2.00
Quantity:

piece

Product Summary

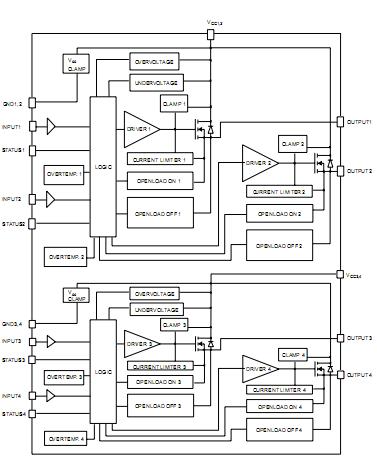

The VNQ830E is a quad channel high side driver. It is intended for driving any type of multiple loads with one side connected to ground. Active VCC pin voltage clamp protects the VNQ830E against low energy spikes. Active current limitation combined with thermal shutdown and automatic restart protects the device against overload. The VNQ830E detects open load condition both in on and off state. Output shorted to VCC is detected in the off state.

Parametrics

VNQ830E absolute maximum ratings: (1)DC Supply Voltage:41 V; (2)Reverse DC Supply Voltage:- 0.3 V; (3)DC Reverse Ground Pin Current:- 200 mA; (4)DC Output Current:Internally Limited; (5)Reverse DC Output Current:- 6 A; (6)DC Input Current:±10 mA; (7)DC Status Current:±10 mA; (8)Power dissipation (per island) at Tlead=25℃:6.25 W; (9)Junction Operating Temperature:Internally Limited; (10)Storage Temperature:- 55 to 150℃.
