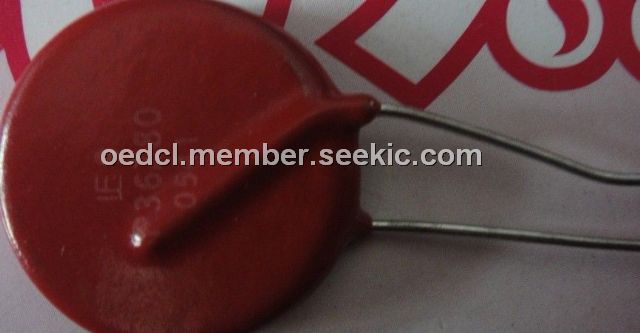

Product Summary

The V36ZA80P is a radial-lead varistor designed for use in the protection of low and medium- voltage circuits and systems. Typical applications of the V36ZA80P include motor control, telecom, automotive systems, solenoid, and power supply circuits to protect circuit board components and maintain data integrity.

Parametrics

V36ZA80P absolute maximum ratings: (1)Continuous: Steady State Applied Voltage: AC Voltage Range (VM(AC)RMS): 4 to 460 V; DC Voltage Range (VM(DC)): 5.5 to 615 V ; (2)Transient: Peak Pulse Current (I TM), For 8/20μs Current Wave: 50 to 6500 A, Single Pulse Energy Range, For 10/1000μs Current Wave (WTM): 0.1 to 52 J; (3)Operating Ambient Temperature Range (TA): -55 to85℃; (4)Storage Temperature Range (TSTG): -55 to125℃; (5)Temperature Coefficient (&V) of Clamping Voltage (VC) at Specified Test Current: <0.01 %/℃; (6)Hi-Pot Encapsulation (Isolation Voltage Capability): 2500 V; (7)(Dielectric must withstand indicated DC voltage for one minute per MIL-STD 202, Method 301), Insulation Resistance: 1000 MΩ.

Features

V36ZA80P features: (1)Lead-free and RoHS compliant option available; (2)Wide Operating Voltage Range VM(AC)RMS: 4V to 460V; (3)DC Voltage Ratings: 5.5V to 615V; (4)No Derating Up to 85℃ Ambient; (5)5 Model Sizes Available: 5, 7, 10, 14, and 20mm; (6)Radial-Lead Package for Hard-Wired or Printed Circuit Board Designs; (7)Available in Tape and Reel or Bulk Pack; (8)Standard Lead Form Option.

Diagrams

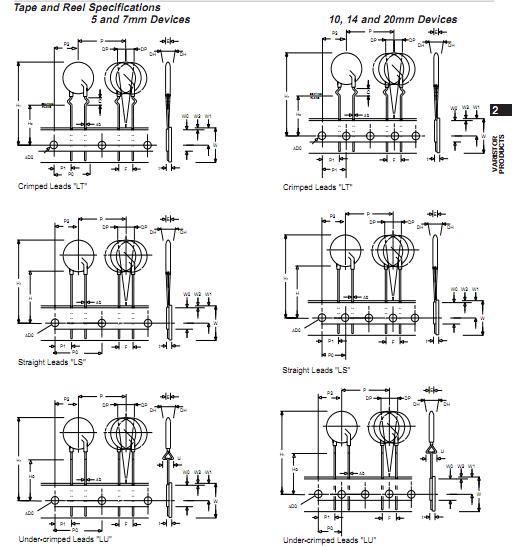

V36ZA80P diemnsions
