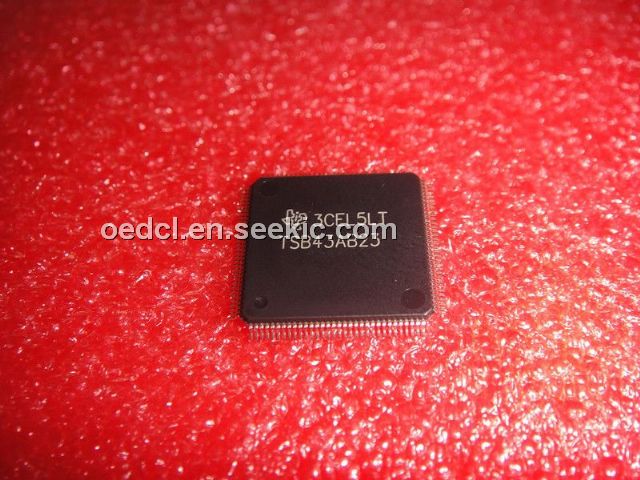

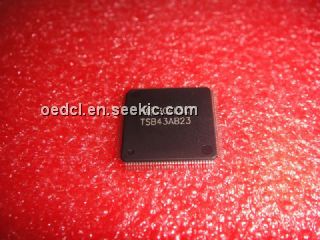

Product Summary

The TSB43AB23 is an integrated 1394a-2000 OHCI PHY/link-layer controller (LLC) device that is fully compliant with the PCI Local Bus Specification, the PCI Bus Power Management Interface Specification (Revision 1.1), IEEE Std 1394-1995, IEEE Std 1394a-2000, and the 1394 Open Host Controller Interface Specification (Release 1.1). It is capable of transferring data between the 33-MHz PCI bus and the 1394 bus at 100M bits/s, 200M bits/s, and 400M bits/s. The TSB43AB23 provides three 1394 ports that have separate cable bias (TPBIAS). The TSB43AB23 also supports the IEEE Std 1394a-2000 power-down features for battery-operated applications and arbitration enhancements.

Parametrics

TSB43AB23 absolute maximum ratings: (1)Supply voltage range: REG18: –0.2 V to 2.2 V; (2)AVDD: –0.3 V to 4.0 V; (3)DVDD: –0.3 V to 4.0 V; (4)PLLVDD: –0.3 V to 4.0 V; (5)VDDP: –0.5 V to 5.5 V; (6)Input voltage range for PCI, VI, PHY, and Miscellaneous: –0.5 to VDD + 0.5 V; (7)Output voltage range for PCI, VO, PHY, and Miscellaneous : –0.5 to VDD + 0.5 V; (8)Input clamp current, IIK (VI<0 or VI>VDD): ±20 mA; (9)Output clamp current, IOK (VO<0 or VO>VDD): ±20 mA; (10)Electrostatic discharge: HBM: 2 kV; (11)Continuous total power dissipation: See Dissipation Rating Table; (12)Operating free-air temperature, TA: 0 to 70℃; (13)Storage temperature range, Tstg: –65 to 150℃; (14)Lead temperature 1,6 mm (1/16 inch) from cage for 10 seconds : 260℃.

Features

TSB43AB23 features: (1)Fully compliant with 1394 Open Host Controller Interface Specification (Release 1.1); (2)Fully compliant with provisions of IEEE Std 1394-1995 for a high-performance serial bus?and IEEE Std 1394a-2000; (3)Fully interoperable with FireWire and i.LINK implementations of IEEE Std 1394; (4)Compliant with Intel Mobile Power Guideline 2000; (5)Full IEEE Std 1394a-2000 support includes: connection debounce, arbitrated short reset, multispeed concatenation, arbitration acceleration, fly-by concatenation, and port disable/suspend/resume; (6)Power-down features to conserve energy in battery-powered applications include: automatic device power down during suspend, PCI power management for link-layer, and inactive ports powered down; (7)Ultralow-power sleep mode; (8)Three IEEE Std 1394a-2000 fully compliant cable ports at 100M bits/s, 200M bits/s, and 400M bits/s; (9)Cable ports monitor line conditions for active connection to remote node; (10)Cable power presence monitoring; (11)Separate cable bias (TPBIAS) for each port; (12)1.8-V core logic with universal PCI interfaces compatible with 3.3-V and 5-V PCI signaling environments; (13)Physical write posting of up to three outstanding transactions; (14)PCI burst transfers and deep FIFOs to tolerate large host latency; (15)PCI_CLKRUN protocol; (16)External cycle timer control for customized synchronization; (17)Extended resume signaling for compatibility with legacy DV components; (18)PHY-link logic performs system initialization and arbitration functions; (19)PHY-link encode and decode functions included for data-strobe bit level encoding; (20)PHY-link incoming data resynchronized to local clock; (21)Low-cost 24.576-MHz crystal provides transmit and receive data at 100M bits/s, 200M bits/s, and 400M bits/s; (22)Node power class information signaling for system power management; (23)Serial ROM interface supports 2-wire serial EEPROM devices; (24)Two general-purpose I/Os; (25)Register bits give software control of contender bit, power class bits, link active control bit, and IEEE Std 1394a-2000 features; (26)Fabricated in advanced low-power CMOS process; (27)Isochronous receive dual-buffer mode; (28)Out-of-order pipelining for asynchronous transmit requests; (29)Register access fail interrupt when the PHY SCLK is not active.

Diagrams

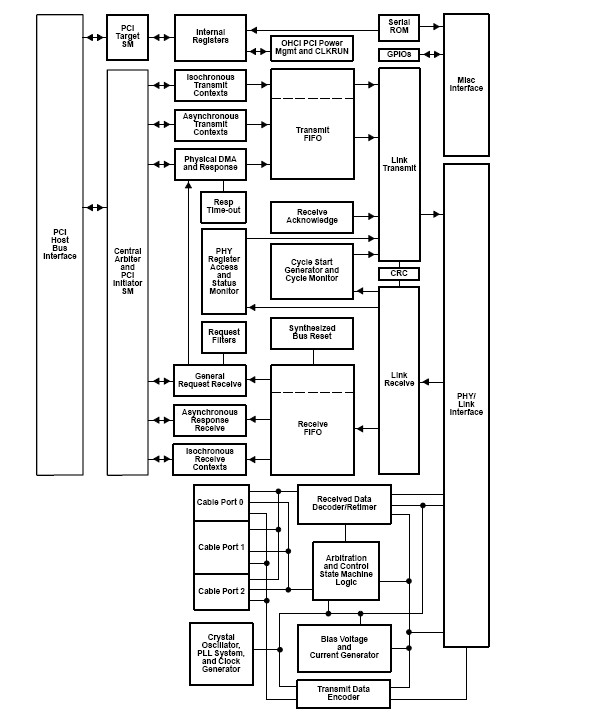

TSB43AB23 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TSB43AB23
TSB43AB23

Other


Data Sheet

Negotiable
TSB43AB23IPDTEP
TSB43AB23IPDTEP

Texas Instruments

1394 Interface IC Mil Enh OHCI PHY/ Link Layer Cntrlr

Data Sheet

0-1: $7.19
1-25: $5.89
25-100: $5.32
100-250: $4.89
TSB43AB23PDT
TSB43AB23PDT

Texas Instruments

1394 Interface IC OHCI 1.1 1394a Link Layer Cntrlr Intgrt

Data Sheet

0-1: $5.60
1-25: $4.72
25-100: $4.34
100-250: $3.95
TSB43AB23PDTG4
TSB43AB23PDTG4

Texas Instruments

1394 Interface IC OHCI 1.1 1394a Link Layer Cntrlr Intgrt

Data Sheet

0-1: $6.38
1-25: $5.23
25-100: $4.72
100-250: $4.33
TSB43AB23PGE
TSB43AB23PGE

Texas Instruments

1394 Interface IC OHCI 1.1 1394a Link Layer Cntrlr Intgrt

Data Sheet

0-1: $5.60
1-25: $4.72
25-100: $4.34
100-250: $3.95
TSB43AB23PGEG4
TSB43AB23PGEG4

Texas Instruments

1394 Interface IC OHCI 1.1 1394a Link Layer Cntrlr Intgrt

Data Sheet

0-1: $5.52
1-25: $4.72
25-100: $3.44
100-250: $3.31
