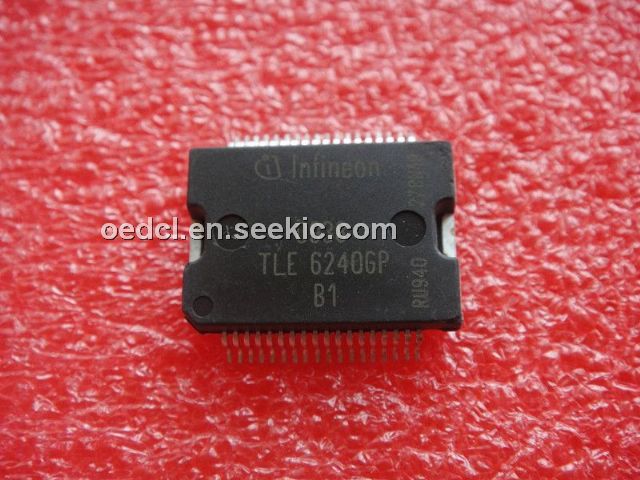

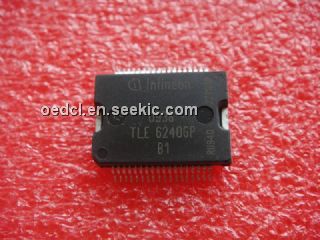

TLE6240GP

TLE6240GP, 16-fold Low-Side Switch, SOP, -0.3 to 7V, 14A, Infineon Technologies AG

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~2.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 5 :	2.20 / Piece
10 ~ 100 :	2.00 / Piece

PartNumber:: TLE6240GP

Brand:: Infineon Technologies AG - Infineon | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-10

From Other Seller

Part Number:TLE6240GP
US $2.00 - 2.20
Quantity:

piece

Product Summary

The TLE6240GP is a 16-fold Low-Side Switch in Smart Power Technology (SPT) with a Serial Peripheral Interface (SPI) and 16 open drain DMOS output stages. The TLE6240GP is protected by embedded protection functions and designed for automotive and industrial applications. The output stages are controlled via SPI Interface. Additionally 8 channels can be controlled direct in parallel for PWM applications. Therefore the TLE6240GP is particularly suitable for engine management and powertrain systems, safety and body applications. The applications of the TLE6240GP include Automotive and Industrial Systems, Solenoids, Relays and Resistive Loads.

Parametrics

TLE6240GP absolute maximum ratings: (1)Supply voltage VS: -0.3 to 7 V; (2)Continuous Drain Source Voltage (OUT1 to OUT16): 45V; (3)Input Voltage, All Inputs and Data Lines: -0.3 to 7 V; (4)Output current per Channel (All 16 Channels ON; Mounted on PCB) : 0.3A; (5)Output current (Max. total current of all channels on; Heat; (6)Sink required): 14A.

Features

TLE6240GP features: (1)Short Circuit Protection; (2)Over temperature Protection; (3)Overvoltage Protection; (4)16 bit Serial Data Input and Diagnostic Output (2 bit/channel for Open Load- and Short to GND detection); (5)Direct Parallel Control of eight channels for PWM Applications; (6)Parallel Inputs High or Low Active programmable; (7)General Fault Flag; (8)Low Quiescent Current; (9)Compatible with 3 V Microcontrollers; (10)Electrostatic discharge (ESD) Protection; (11)Green Product (RoHS compliant); (12)AEC Qualified.
