TE28F160B3TD70

TE28F160B3TD70, Advanced Boot Block Flash Memory, 13.5 V, 100 mA, TSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	2.00 / Piece
20 ~ 100 :	1.80 / Piece

PartNumber:: TE28F160B3TD70

Brand:: Intel Corporation - Intel | Pack: TSOP | D/C: 08+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-02

From Other Seller

Part Number:TE28F160B3TD70
US $1.80 - 2.00
Quantity:

piece

Product Summary

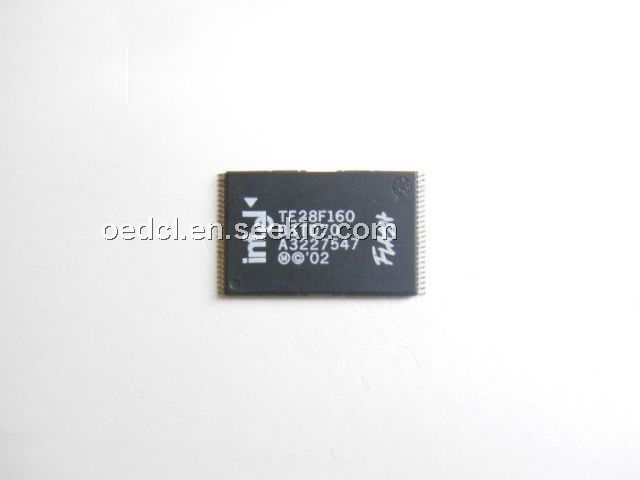

The TE28F160B3TD70 is a 3 Volt Advanced Boot Block Flash Memory.

Parametrics

TE28F160B3TD70 absolute maximum ratings: (1)Extended Operating Temperature, During Read: -40 ℃ to +85 ℃; During Block Erase and Program: -40 ℃ to +85 ℃; Temperature under Bias: -40 ℃ to +85 ℃; (2)Storage Temperature -65 ℃ to +125 ℃; (3)Voltage On Any Pin (except VCC, VCCQ and VPP) with Respect to GND: -0.5 V to +3.7 V; (4)VPP Voltage (for Block Erase and Program) with Respect to GND: -0.5 V to +13.5 V; (5)VCC and VCCQ Supply Voltage with Respect to GND: -0.2 V to +3.7 V; (6)Output Short Circuit Current: 100 mA.

Features

TE28F160B3TD70 features: (1)Flexible SmartVoltage Technology; (2)2.7 V or 1.65 V I/O Option; (3)High Performance; (4)Optimized Block Sizes; (5)Block Locking; (6)Low Power Consumption; (7)Absolute Hardware-Protection; (8)Extended Temperature Operation; (9)Automated Program and Block Erase; (10)x8 not recommended for new designs; (11)4-Mbit density not recommended for new designs.
