Product Summary

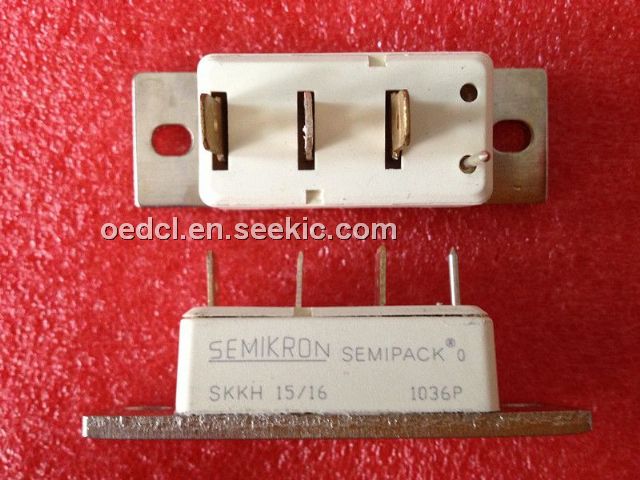

The SKKH15/16 is a Thyristor / Diode Module. The applications of the SKKH15/16 include DC motor control, Temperature control and Professional light dimming

Parametrics

SKKH15/16 absolute maximum ratings: (1)ITAV: 13.5(9.5)A; (2)ITSM: 320A; (3)VT: 2.45V; (4)rT: 20mΩ; (5)tgd: 1μs; (6)VGT: 3V; (7)IGT: 100mA.

Features

SKKH15/16 features: (1)Heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)Hard soldered joints for high reliability; (3)UL recognized, file no. E 63 532.

Diagrams

SKKH15/16 dimension
