Product Summary
The RTC62421A is a 4-bit Real time clock module.
Parametrics
RTC62421A absolute maximum ratings: (1)Supply Voltage VDD (Ta = +25℃): -0.3V to +7.0V; (2)Input Voltage VI/O (Ta = +25℃): GND-0.3V to VDD+0.3V; (3)Storage temperature Tstg: -55℃ to +85℃.
Features
RTC62421A features: (1)Built-in crystal unit allows adjustment-free efficient operation; (2)24h/12h changeable and leap year automatically adjustable (Gregorian calendar); (3)Pins and functions are compatible with the MSM6242 series.

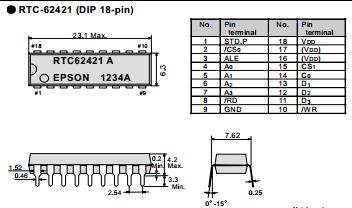

Diagrams
