Product Summary
The rfp30p05 is a P-Channel power MOSFET. The rfp30p05 uses feature sizes approaching those of LSI circuits, gives optimum utilization of silicon, resulting in outstanding performance. Applications of the rfp30p05 include: switching regulators, switching converters, motor drivers, and relay drivers.
Parametrics
rfp30p05 absolute maximum ratings: (1) Drain to Source Voltage VDSS: -50V; (2) Drain to Gate Voltage (R GS=20kΩ) VDGR: -50V; (3) Gate to Source Voltage VGS: ±20A; (4) Continuous Drain Current ID: 30A; (5) Power Dissipation PD: 120W; (6) Linear Derating Factor: 0.8W/°C; (7) Operating and Storage Temperature: -55 to 175°C; (8) Maximum Temperature for Soldering TL: 300°C (Leads at 0.063in (1.6mm) from Case for 10s) , Tpkg: 260°C (Package Body for 10s, See Techbrief 334) .
Features

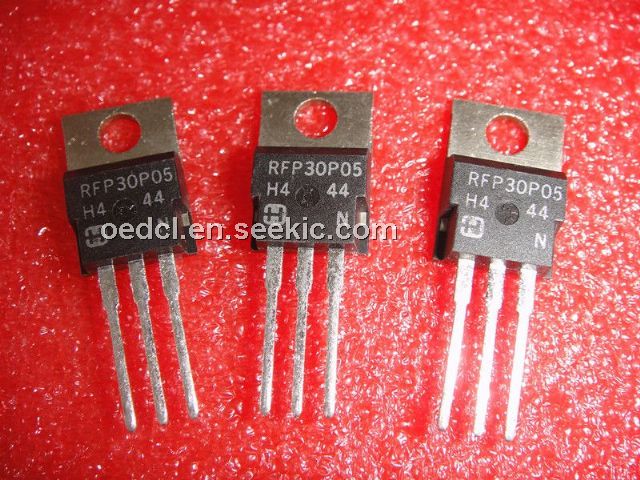

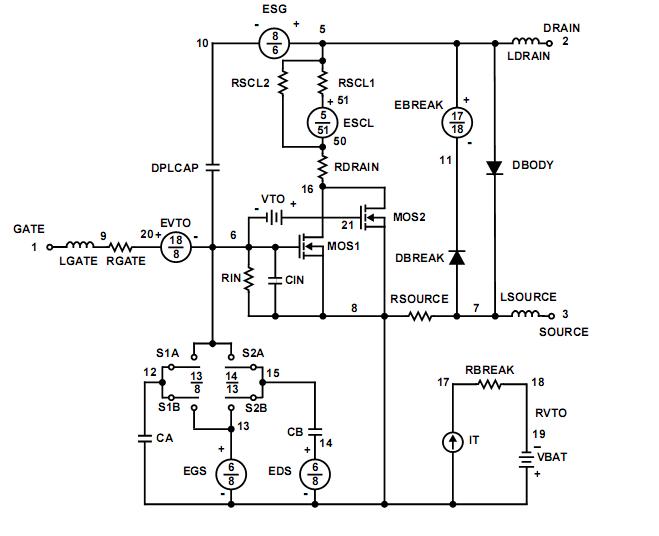

rfp30p05 features: (1) 30A, 50V; (2) rDS (ON) =0.065Ω; (3) Temperature Compensating PSPICE Model; (4) Peak Current vs Pulse Width Curve; (5) UIS Rating Curve; (6) 175°C Operating Temperature; (7) Related Literature.
