Product Summary

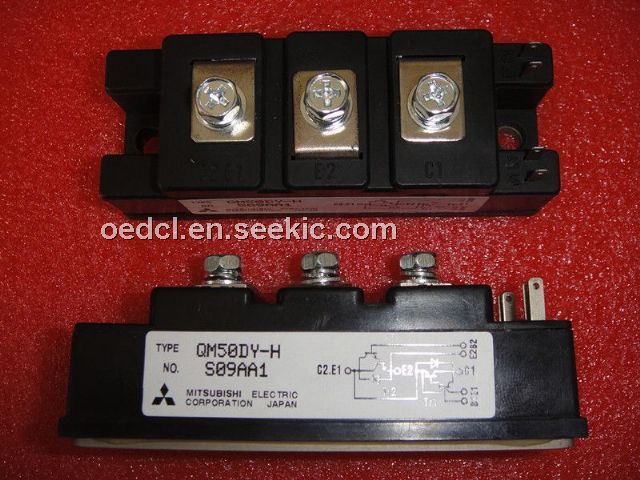

The QM50DY-H is a transistor module. It is designed for AC motor controllers, UPS, DC motor controllers, NC equipment, welders.

Parametrics

QM50DY-H absolute maximum ratings: (1)On the conditions of IC=1A, VEB=2V, VCEX (SUS) collector-emitter voltage: 600V; (2)On the conditions of VEB=2V, VCEX collector-emitter voltage: 600V; (3)On the conditions of emitter open, VCBO collector-base voltage: 600V; (4)On the conditions of collector open, VEBO emitter-base voltage: 7V; (5)On the conditions of DC, IC collector current: 50A; (6)On the conditions of DC, -IC collector reverse current: 50A; (7)On the conditions of TC=25℃, PC Collector dissipation: 310W.

Features

QM50DY-H features: (1)IC collector current: 50A; (2)VCEX collector-emitter voltage: 600V; (3)hFE DC current gain: 75; (4)Insulated Type; (5)UL recognized: Yellow card No. E80276 (N); File No. E80271.

Diagrams

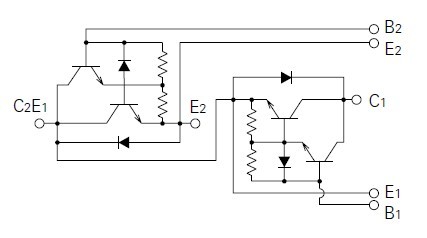

QM50DY-H pin connection
