Product Summary

The p8275 is a fixed gain differential amplifer. The p8275 is with a-2V to 27V input common mode voltage range and a supply voltage range of 4.5V to 5.5V. Applications of the p8275 include: Fuel Injection Control, Low Side Driver Configuration Current Sensing and Power Management Systems.

Parametrics

p8275 absolute maximum ratings: ESD Tolerance Human Body Model For input pins only: ±4000V, For All other pins: 2000V, Machine Model: 200V; (2) Supply Voltage(Vs-GND) : 5.75V; (3) CMVR Continuous: -5 to 42 Volts, Transient (300ms) : TBD to 45 Volts; (4) Storage Temperature Range: -65 to +150°C; (5) Junction Temperature : +150°C MAX.

Features

p8275 features: (1) Typical Values, TA=25°C; (2) Input Offset Voltage: 1mV max; (3) CMRR: 30μV/°C max; (4) Extended CMVR: -5 to 36V; (5) Output Voltage Swing: Rail to Rail; (6) Bandwidth: 80KHz; (7) Operating Temperature Range (Ambient) : -40 to +125°C; (8) Operating Temperature Range (baredie) : -40 to +150°C; (9) Supply Voltage: 4.5 to 5.5V; (10) Supply Current: 1mA.

Diagrams

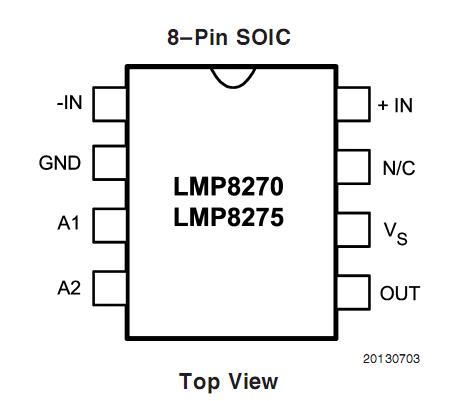

p8275 Pin Configuration
