Product Summary

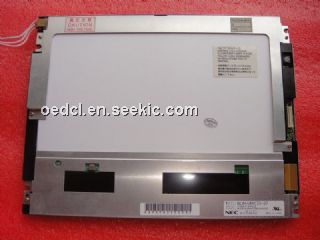

The NL6448AC33-27 is a TFT color LCD module. The NL6448AC33-27 is a LCD comprising amorphous silicon TFT attached to each signal electrode, a driving circuit and a backlight. The NL6448AC33-27 has a built-in backlight. Backlight includes long-life-lamps and the lamps are replaceable. Its applications include display terminals for control system, monitors for process controllers, industrial PC.
Parametrics
NL6448AC33-27 absolute maximum ratings: (1)Supply voltage: -0.3 to 6.5V; (2)Input voltage: -0.3 to 6.5V; (3)Supply voltage, VDDB: -0.3 to 15V; (4)Lamp voltage: 2000V; (5)Storage temperature: -20 to 60℃; (5)Operating temperature: 0 to 50℃.
Features
NL6448AC33-27 features: (1)Ultra wide viewing angle with lateral electric field; (2)High luminance; (3)Low reflection; (4)6-bit digital RGB interface; (5)Lamp holder replaceable; (6)Reversible scan direction; (7)Variable luminance control; (8)Easy to assemble a touch panel.

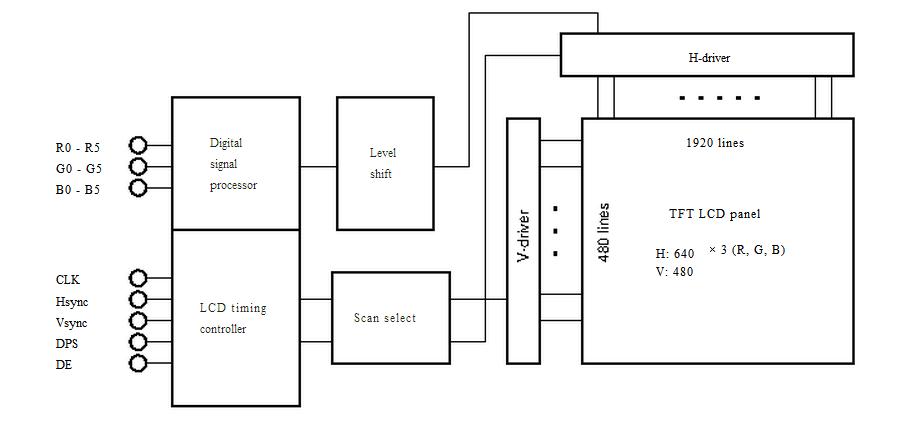

Diagrams
