Product Summary

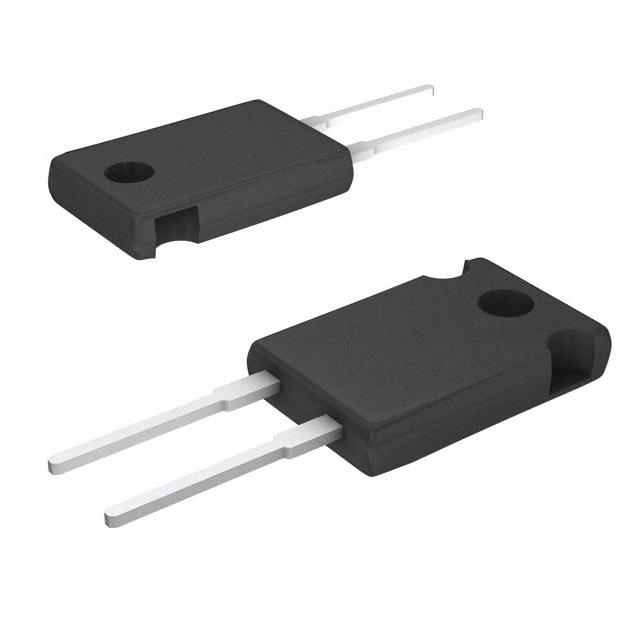

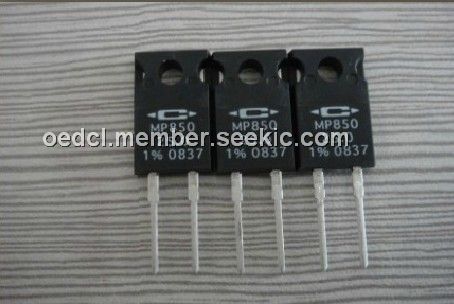

The MP850-25.0-1% is a Kool-Pak Power Film Resistor. The MP850-25.0-1% is constructed with Caddocks Micronox resistance film fired onto a flat ceramic substrate. The terminal attachment and resistance element geometry are configured to provide outstanding non-inductive performance. The ceramic substrate is bonded to a copper heat sink which becomes the metal mounting surface. This assembly is molded in a high thermal conductivity molding compound with the copper heat sink flush with the back surface of the MP850-25.0-1%.
Parametrics
MP850-25.0-1% absolute maximum ratings: (1)Power Rating: 25 Watts; (2)Dielect. Strength VRMS AC: 1,500; (3)Max. Resistance: 300.
Features
MP850-25.0-1% features: (1)50 Watts at +25℃ Case Temperature; (2)derated to zero at +150℃; (3)Copper Heat Sink Integral in the Molded Package; (4)Resistance Range of 0.20 ohm to 10.0K; (5)Resistor element is electrically isolated from the mounting surface.
Diagrams

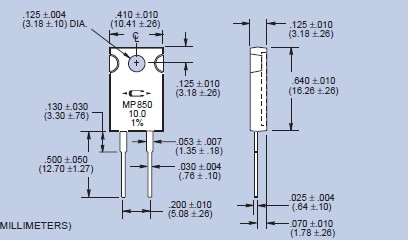

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MP850-25.0-1% |
Caddock |
Thick Film Resistors - Through Hole 25ohm 1% 50W |
Data Sheet |
|
|
||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||
 |
MP850 8.00 1% |
Caddock |
Thick Film Resistors - Through Hole USE 684-MP850-8.0 |
Data Sheet |
Negotiable |
|
||||||||||||||||
|
MP850-0.20-1% |
Caddock |
Thick Film Resistors - Through Hole 50W 0.2 OHM 1% |
Data Sheet |
|
|
||||||||||||||||
|
MP850-0.50-1% |
Caddock |
Thick Film Resistors - Through Hole 0.50ohm 1% 50W |
Data Sheet |
|
|
||||||||||||||||
|
MP850-0.75-1% |
Caddock |
Thick Film Resistors - Through Hole 0.75 ohm 1% 50W |
Data Sheet |
|
|
||||||||||||||||
 |
MP850-1.00-1% |
|
RES 1.00 OHM 50W 1% TO-220 |
Data Sheet |
|
|
||||||||||||||||
|
MP850-1.00K-1% |
Caddock |
Thick Film Resistors - Through Hole 1Kohm 1% 50W |
Data Sheet |
|
|
||||||||||||||||
