Product Summary
The MP6752 is a silicon N channel IGBT.
Parametrics
MP6752 absolute maximum ratings: (1)Colleetor-Emitter Voltage VCES: 600 V; (2)Gate-Emitter Voltage VGES: ±20 V; (3)Collector Current DC ic: 20 A; (4)Collector Current 1ms CP: 40 A; (5)Forward Current DC IF: 20 A; (6)Forward Current 1ms IFM: 40A; (7)Collector Power Dissipation (Te = 25°C) Pc: 60 W; (8)Junction Temperature Tj: 150 °C; (9)Storage Temperature Range Tstg: -40 to 125 °C; (10)Isolation Voltage vIsol: 2500 (AC 1 minute) V; (11)Screw Torque: 1.5 N-m.
Features
MP6752 features: (1)The Electrodes are Isolated from Case.; (2)6 IGBTs are Built Into 1 Package.; (3)Enhancement-Mode; (4)Low Saturation Voltage : VCE (sat)= 4.0V (Max.)(IC = 20A); (5)High Speed : tf=0.35^s (Max.)(Ic = 20A)trr -0.15/^s (Max.)(IF = 20A).

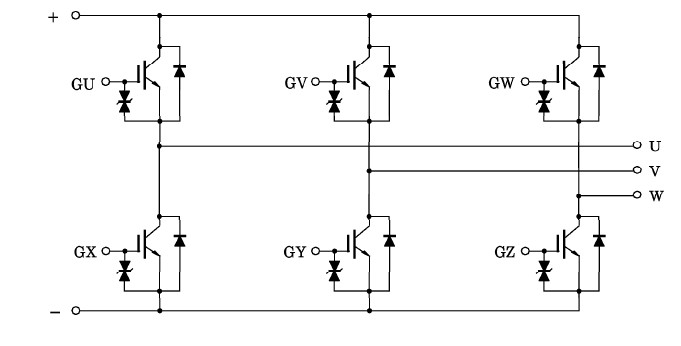

Diagrams
 |
