Product Summary
The MM74HC74AN is a Dual D-Type Flip-Flop with Preset and Clear. The MM74HC74AN utilizes advanced silicon-gate CMOS technology to achieve operating speeds similar to the equivalent LS-TTL part. It possesses the high noise immunity and low power consumption of standard CMOS integrated circuits, along with the ability to drive 10 LS-TTL loads.
Parametrics
MM74HC74AN absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to +7.0V; (2)DC Input Voltage (VIN): -1.5 to VCC +1.5V; (3)DC Output Voltage (VOUT): -0.5 to VCC +0.5V; (4)Clamp Diode Current (IIK, IOK): ±20 mA; (5)DC Output Current, per pin (IOUT): ±25 mA; (6)DC VCC or GND Current, per pin (ICC): ±50 mA; (7)Storage Temperature Range (TSTG): -65 to +150℃; (8)Power Dissipation (PD): 600 mW; (9)Lead Temperature (TL) (Soldering 10 seconds): 260℃.
Features
MM74HC74AN features: (1)Typical propagation delay: 20 ns; (2)Wide power supply range: 2–6V; (3)Low quiescent current: 40 μA maximum (74HC Series); (4)Low input current: 1 μA maximum; (5)Fanout of 10 LS-TTL loads.

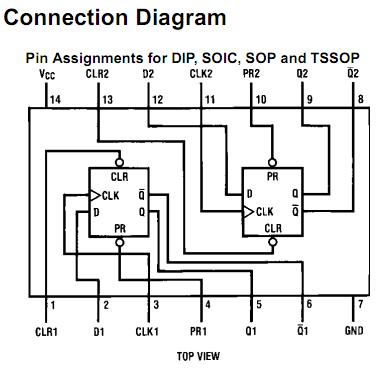

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MM74HC74AN |
Fairchild Semiconductor |
Flip Flops Dl D-Type Flip-Flop |
Data Sheet |
