Product Summary

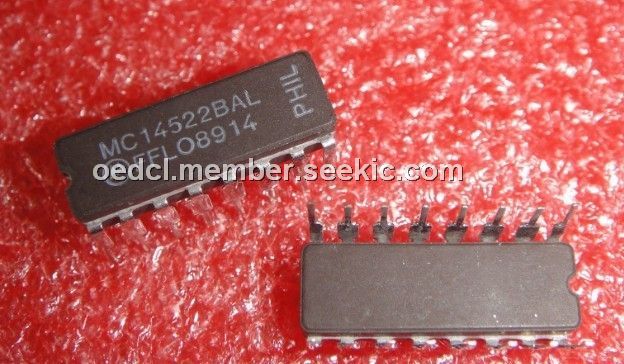

The MC14522BAL is a presettable 4-Bit down counter. The MC14522BAL is constructed with MOS P–channel and N–channel enhancement mode device in a monolithic structure. The MC14522BAL is presettable, cascadable, synchronous down counters with a decoded 0 state output for divide–by–N applications. In single stage applications the 0 output is applied to the Preset Enable input. The Cascade Feedback input allows cascade divide–by–N operation with no additional gates required. The Inhibit input allows disabling of the pulse counting function. Inhibit may also be used as a negative edge clock.
Parametrics
MC14522BAL absolute maximum ratings: (1)VDD DC Supply Voltage: – 0.5 to + 18.0 V; (2)Vin, Vout Input or Output Voltage (DC or Transient): – 0.5 to VDD + 0.5 V; (3)Iin, Iout Input or Output Current (DC or Transient), per Pin: ± 10 mA; (4)PD Power Dissipation, per Package: 500 mW; (5)Tstg Storage Temperature: – 65 to + 150℃; (6)TL Lead Temperature (8–Second Soldering): 260℃.
Features
MC14522BAL features: (1)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (2)Logic Edge–Clocked Design — Incremented on Positive Transition of Clock or Negative Transition of Inhibit; (3)Asynchronous Preset Enable; (4)Capable of Driving Two Low–power TTL Loads or One Low–power Schottky TTL Load Over the Rated Temperature Range.

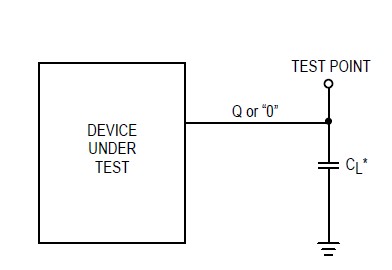

Diagrams
 |
