Product Summary

The MAX3100CPD is an universal asynchronous receiver transmitter (UART).The MAX3100CPD is the first UART specifically optimized for small microcontroller-based systems. Using an SPI/Microwire interface for communication with the host microcontroller (μC), the MAX3100CPD comes in a compact 16-pin QSOP. The asynchronous I/O is suitable for use in RS-232, RS-485, IR, and opto-isolated data links. IR-link communication is easy with the MAX3100CPD infrared data association (IrDA) timing mode. Applications of the MAX3100CPD are Hand-Held Instruments, Intelligent Instrumentation, UART in SPI Systems, Small Networks in HVAC or Building Control, Isolated RS-232/RS-485: Directly Drives Opto-Couplers, Low-Cost IR Data Links for Computers/Peripherals.



Parametrics

MAX3100CPD absolute maximum ratings: (1)Voltage Referenced to VV+: -0.3V, 44V GND: -0.3V, 25V Digital Inputs, NO, COM: (V- - 2V)to (V+ + 2V)or 30mA (whichever occurs first); (2)Continuous Current (any terminal): 30mA; (3)Peak Current, NO or COM (pulsed at 1ms, 10% duty cycle max): 100mA; (4)Continuous Power Dissipation (TA = +70℃)Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW; (5)Narrow SO (derate 8.70mW/℃ above +70℃): 696mW; (6)16 QSOP (derate 8.3mW/℃ above +70℃): 666.7mW.

Features

MAX3100CPD features: (1)16-Pin QSOP Package (8-pin SO footprint): Smallest UART Available; (2)Full-Featured UART: IrDA SIR Timing Compatible; 8-Word FIFO Minimizes Processor; (3)Overhead at High Data Rates; Up to 230k Baud with a 3.6864MHz Crystal; 9-Bit Address-Recognition Interrupt; Receive Activity Interrupt in Shutdown; (4)SPI/Microwire-Compatible μC Interface; (5)Lowest Power: 150μA Operating Current at 3.3V; 10μA in Shutdown with Receive Interrupt; (6)+2.7V to +5.5V Supply Voltage in Operating Mode; (7)Schmitt-Trigger Inputs for Opto-Couplers; (8)TX and RTS Outputs Sink 25mA for Opto-Couplers.

Diagrams

MAX3100CPD pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

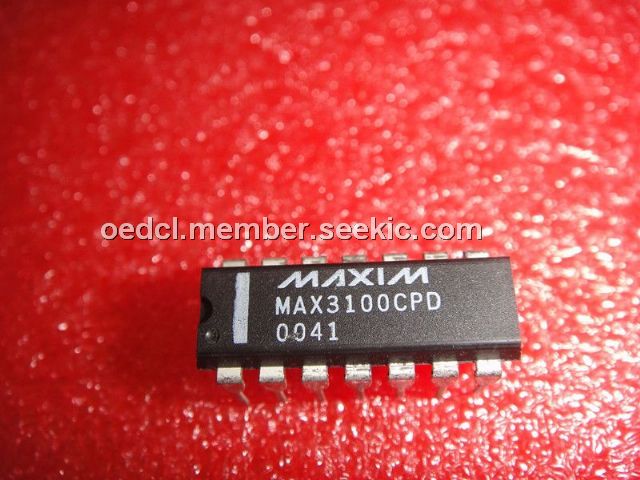

MAX3100CPD+
MAX3100CPD+

Maxim Integrated Products

UART Interface IC SPI/uWire Compatible

Data Sheet

0-1: $4.90
1-25: $3.26
25-50: $2.36
50-100: $2.33
MAX3100CPD
MAX3100CPD

Maxim Integrated Products

UART Interface IC

Data Sheet

Negotiable
