Product Summary

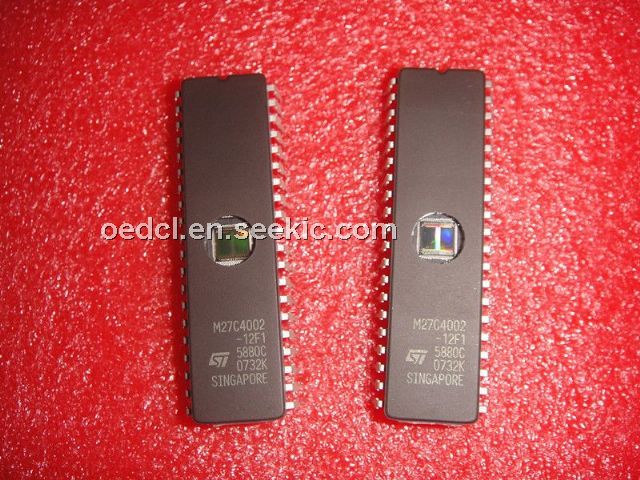

The M27C4002-12F1 is a UV EPROM and OTP EPROM. The M27C4002-12F1 is a 4 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large programs and is organised as 262,144 words of 16 bits. The FDIP40W (window ceramic frit-seal package) and the JLCC44W (J-lead chip carrier packages) have transparent lids which allow the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure. For applications where the content is programmed only one time and erasure is not required, the M27C4002-12F1 is offered in PDIP40, PLCC44 and TSOP40 (10 x 20 mm) packages.
Parametrics
M27C4002-12F1 absolute maximum ratings: (1)Ambient Operating Temperature : –40 to 125 ℃; (2)Temperature Under Bias : –50 to 125 ℃; (3)Storage Temperature : –65 to 150 ℃; (4)Input or Output Voltage (except A9) : –2 to 7 V; (5)Supply Voltage : –2 to 7 V; (6)A9 Voltage : –2 to 13.5 V; (7)Program Supply Voltage : –2 to 14 V.
Features
M27C4002-12F1 features: (1)5V ± 10% supply voltage in read operation; (2)access time: 45ns; (3)low power consumption: active current 70mA at 10MHz; (4)Standby Current 100μA; (5)programming voltage: 12.75V ± 0.25V; (6)programming time: 100μs/word.

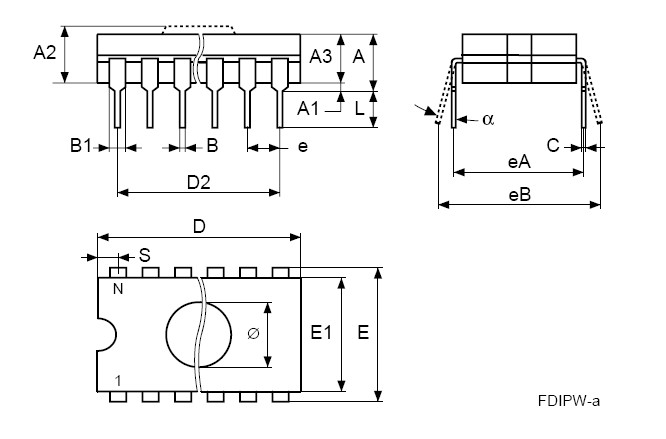

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C4002-12F1 |
STMicroelectronics |
EPROM 4M (256Kx16) 120ns |
Data Sheet |
Negotiable |
|
||||
