Product Summary

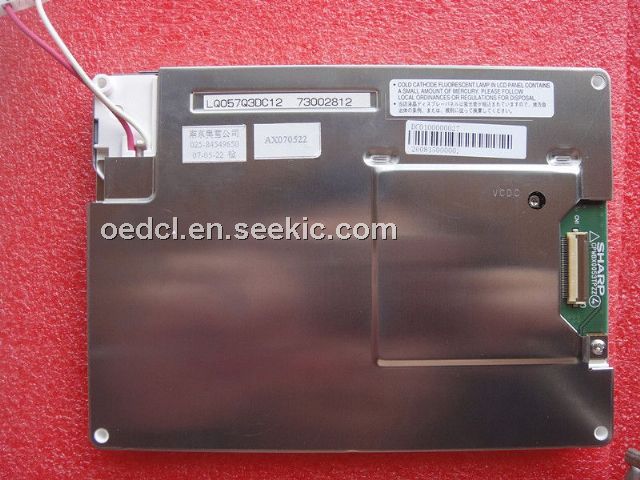

The LQ057Q3DC12 is a Color TFT-LCD Module(FA/POS/Measuring instruments).
Parametrics

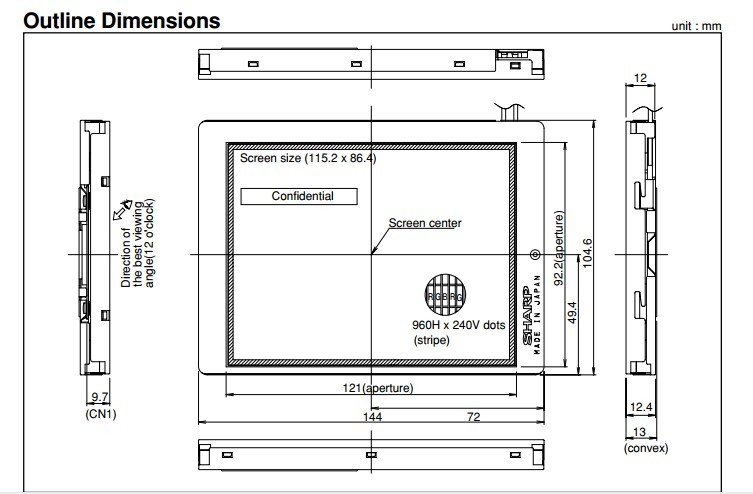

LQ057Q3DC12 absolute maximum ratings: (1)Brightness: 350 cd/m2; (2)Power consumption: 3.9 W; (3)Outline dimensions (W x H x D): 144.0 x 104.6 x 13.0 mm; (4)Weight: 220 g; (5)Operating temperature: -10 to +70 °C; (6)Storage temperature: -30 to +80 °C.
Features
LQ057Q3DC12 features: (1)14.5cm [5.7"] QVGA format; (2)High brightness (350 cd/m2 ); (3)Built-in long life CCFT backlight (50 000 h); (4)Wide viewing angle (Horizontal: 130° Vertical: 105°).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ057Q3DC12 |
Sharp Microelectronics |
TFT Displays & Accessories 5.7" TFT 320X240 500 NITS |
Data Sheet |
Negotiable |
|
||||||||||
