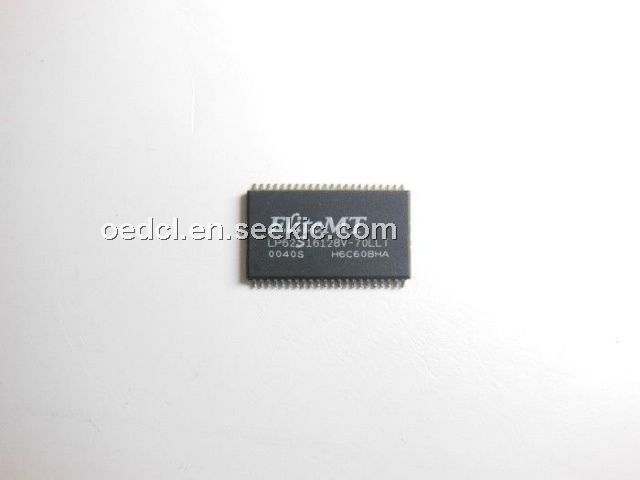

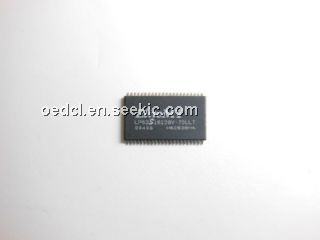

Product Summary

The LP62S16128V-70LLT is a low operating current 2,097,152-bit static random access memory organized as 131,072 words by 16 bits and operates on low power voltage from 2.7V to 3.3V. The LP62S16128V-70LLT is built using AMIC’s high performance CMOS process. Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures.

Parametrics

LP62S16128V-70LLT absolute maximum ratings: (1)VCC to GND: -0.5V to +4.6V; (2)IN, IN/OUT Volt to GND: -0.5V to VCC + 0.5V; (3)Operating Temperature, Topr: -25°C to +85°C; (4)Storage Temperature, Tstg: -55°C to +125°C; (5)Power Dissipation, PT: 0.7W.

Features

LP62S16128V-70LLT features: (1)Operating voltage; (2)Access times: 70 ns (max.); (3)Current: Very low power version: Operating: 35mA (max.), Standby: 10mA (max.); (4)Full static operation, no clock or refreshing required; (5)All inputs and outputs are directly TTL-compatible; (6)Common I/O using three-state output; (7)Data retention voltage: 2V (min.); (8)Available in 44-pin TSOP and 48-ball CSP (6 x 8 mm)packages.

Diagrams

LP62S16128V-70LLT block diagram
