Product Summary

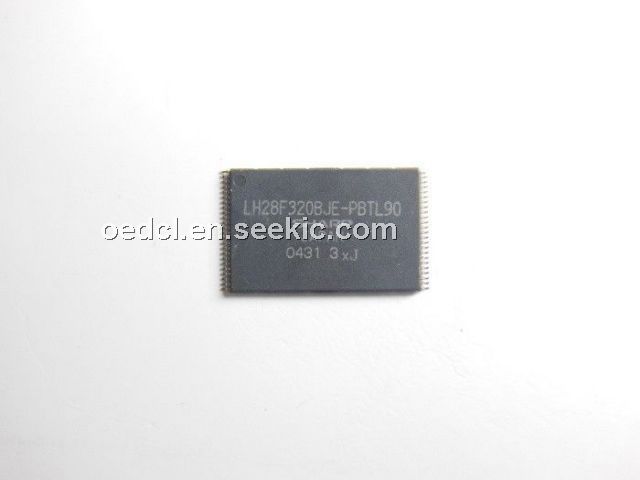

The LH28F320BJE-PBTL90 is a Flash Memory.
Parametrics
LH28F320BJE-PBTL90 absolute maximum ratings: (1)Operating Temperature During Read, Erase and Program : -40°C to +85°C; (2)Storage Temperature During under Bias: -40°C to +85°C; (3)During non Bias: -65°C to +125°C; (4)Voltage On Any Pin (except VCC and VPP): -0.5V to VCC+0.5V; (5)VCC and VCCQ Supply Voltage : -0.2V to +3.9V; (6)VPP Supply Voltage : -0.2V to +12.6V; (7)Output Short Circuit Current : 100mA.
Features
LH28F320BJE-PBTL90 features: (1)64M density with 16Bit I/O Interface High Performance Reads; (2)Configurative 4-Plane Dual Work; (3)Low Power Operation; (4)Enhanced Code + Data Storage; (5)High Performance Program with Page Buffer; (6)Extended Cycling Capability; (7)0.75mm pitch 48-Ball CSP (8mm×11mm); (8)ETOX Flash Technology; (9)Not designed or rated as radiation hardened.

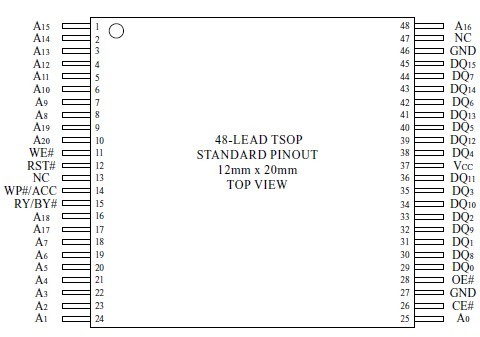

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

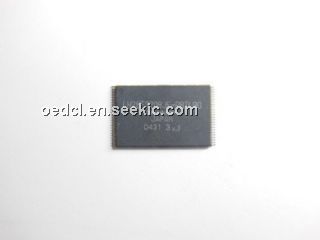

 LH28F320BJE-PBTL90 |
|
IC FLASH 32MBIT 90NS 48TSOP |
Data Sheet |
Negotiable |
|
||||||
