Product Summary

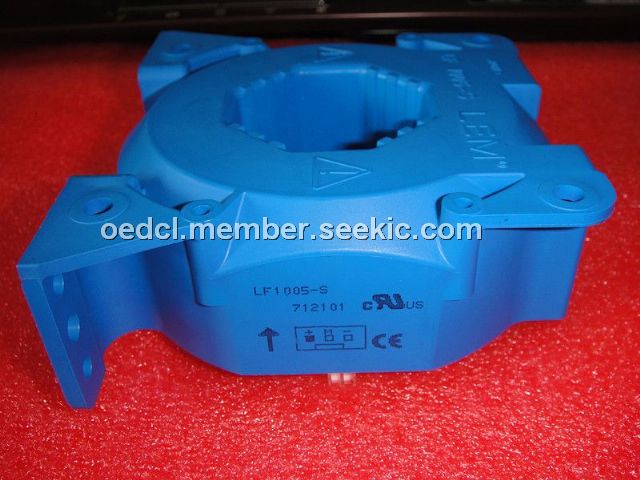

The LF1005-S is a current transducer.
Parametrics
LF1005-S absolute maximum ratings: (1)IPN Primary nominal r.m.s. current: 1000 A; (2)IP Primary current, measuring range: 0 .. ± 1500 A; (3)ISN Secondary nominal r.m.s. current: 200 mA; (4)VC Supply voltage (± 5 %): ± 15 .. 24 V; (5)IC Current consumption 20 (@±24V)+IS mA; (6)Vd R.m.s. voltage for AC isolation test, 50 Hz, 1 mn: 3 kV; (7)TA Ambient operating temperature: - 10 .. + 85 ℃; (8)TS Ambient storage temperature: - 25 .. + 100 ℃.
Features
LF1005-S features: (1)Closed loop (compensated)current transducer using the Hall effect; (2)Insulated plastic case recognized according to UL 94-V0.

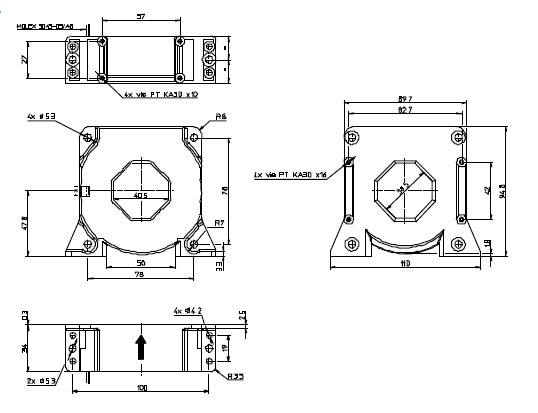

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LF1005-S |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
