Product Summary

The K3746 is an n-channel mos silicon FET. The K3746 has high-voltage high-speed switching applications.

Parametrics

K3746 absolute maximum ratings: (1)Drain-to-Source Voltage VDSS: 1500 V; (2)Gate-to-Source Voltage VGSS: ±20 V; (3)Drain Current (DC)ID: 2 A; (4)Drain Current (Pulse)IDP PW£10ms, duty cycle£1%: 4 A; (5)Allowable Power Dissipation PD: 2.5 W, Tc=25℃: 110 W; (6)Channel Temperature Tch: 150 ℃; (7)Storage Temperature Tstg: -55 to +150 ℃; (8)Avalanche Energy (Single Pulse)EAS: 42 mJ; (9)Avalanche Current IAV: 2 A.

Features

K3746 features: (1)Low ON-resistance, low input capacitance, ultrahigh-speed switching; (2)High reliability (Adoption of HVP process); (3)Avalanche resistance guarantee.

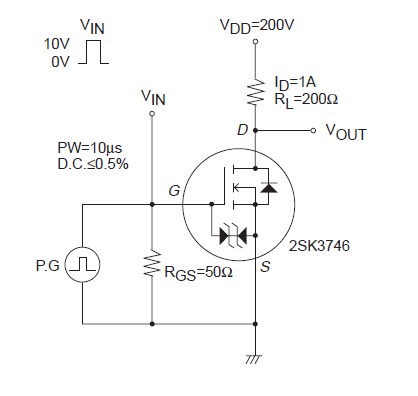

Diagrams

K3746 pin connection
