Product Summary

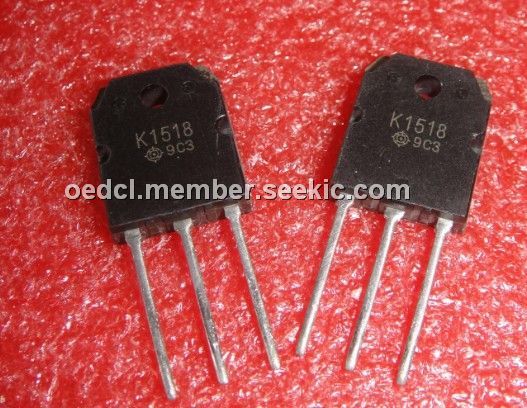

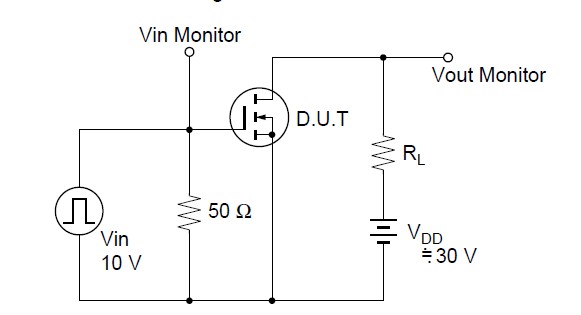

The K1518 is an n-channel mos silicon FET. The K1518 has high-voltage high-speed switching applications.
Parametrics
K1518 absolute maximum ratings: (1)Drain to source voltage VDSS: 500 V; (2)Gate to source voltage VGSS: ±30 V; (3)Drain current ID: 20 A; (4)Drain peak current ID(pulse): 80 A; (5)Body to drain diode reverse drain current IDR: 20 A; (6)Channel dissipation Pch: 120 W; (7)Channel temperature Tch: 150 ℃; (8)Storage temperature Tstg: –55 to +150 ℃.
Features
K1518 features: (1)Low on-resistance; (2)High speed switching; (3)Low drive current; (4)Built-in fast recovery diode (trr = 120 ns); (5)Suitable for motor control, switching regulator, DC-DC converter.
