Product Summary
The IXSH45N100 is a Low VCE(sat) IGBT. The applications of the IXSH45N100 include AC motor speed control, Uninterruptible power supplies (UPS) and Welding.
Parametrics
IXSH45N100 absolute maximum ratings: (1)VCES : 1000 V; (2)VCGR : 1000 V; (3)VGES : ±20 V; (4)VGEM : ±30 V; (5)IC25 : 75 A; (6)IC90 : 45 A; (7)ICM : 180 A; (8)SSOA : ICM = 90 A; (9)tSC: 10 μs; (10)PC : 300 W; (11)TJ : -55 to +150 ℃; (12)TJM : 150 ℃; (13)Tstg : -55 to +150 ℃.
Features
IXSH45N100 features: (1)International standard packages; (2)Guaranteed Short Circuit SOA capability; (3)Low VCE(sat) for low on-state conduction losses; (4)High current handling capability; (5)MOS Gate turn-on drive simplicity.

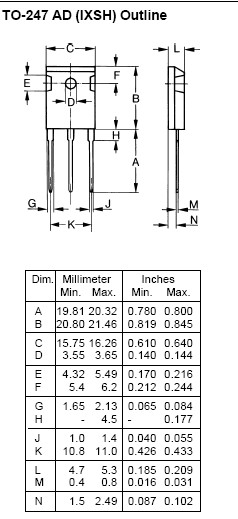

Diagrams

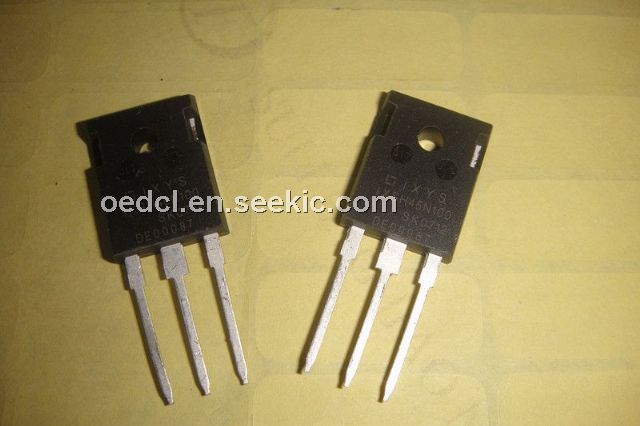

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IXSH45N100 |
Ixys |
IGBT Transistors IGBT SCSOA 1000V 50A |
Data Sheet |
Negotiable |
|
||||
