Product Summary

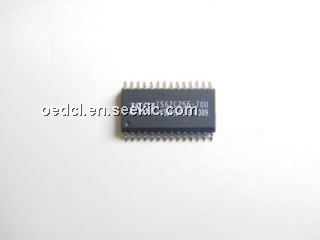

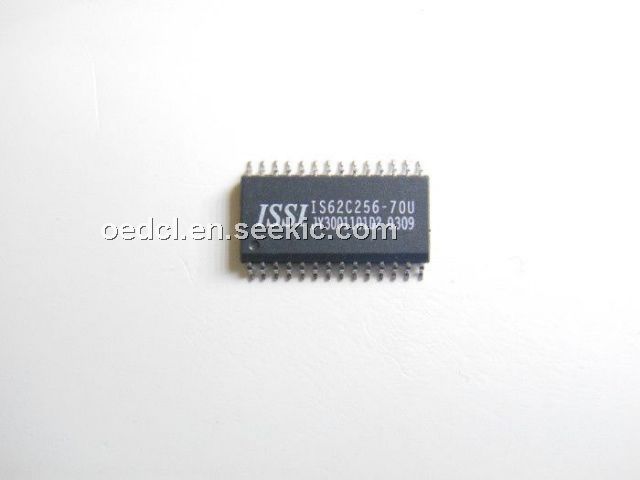

The IS62C256-70U is a low power, 32,768 word by 8-bit ISSI CMOS static RAM. The IS62C256-70U is fabricated using high performance and low power CMOS technology of ISSI. The IS62C256-70U is pin compatible with other 32K x 8 SRAMs in plastic SOP or TSOP (Type I) package.
Parametrics
IS62C256-70U absolute maximum ratings: (1) Terminal voltage with respect to GND VTERM: -0.5V to 7.0V; (2) Temperature under bias TBIAS: -55 to +125°C; (3) Storage temperature Tstg: -65 to +150°C; (4) Power dissipation PD: 0.5W; (5) DC output current (low) IOUT: 20mA.
Features
IS62C256-70U features: (1) Access time: 45, 70ns; (2) Low active power: 200 mW (typical) ; (3) Low standby power: 250μW (typical) CMOS standby, 28 mW (typical) TTL standby; (4) Fully static operation: no clock or refresh required; (5) TTL compatible inputs and outputs; (6) Single 5V power supply.

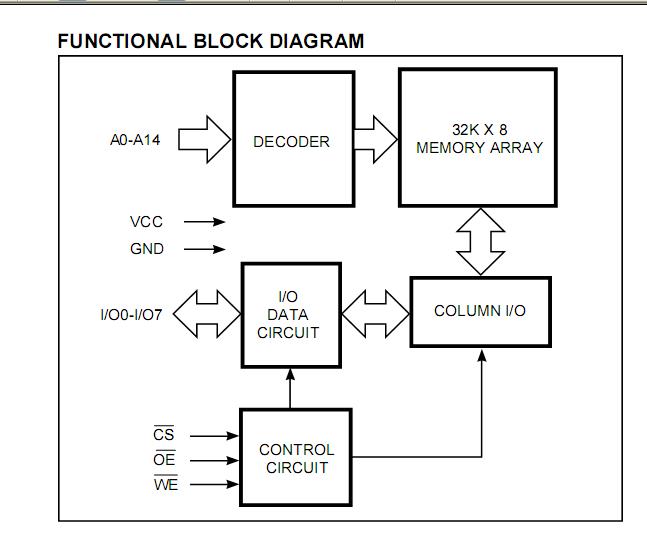

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IS62C256-70U |
ISSI |
SRAM 256K 32K x 8 70ns 5v |
Data Sheet |
Negotiable |
|
||||
|
IS62C256-70UI |
ISSI |
SRAM 256K 32K x 8 70ns 5v |
Data Sheet |
Negotiable |
|
||||
|
IS62C256-70UI-TR |
ISSI |
SRAM 256K 32K x 8 70ns 5v |
Data Sheet |
Negotiable |
|
||||
|
IS62C256-70U-TR |
ISSI |
SRAM 256K 32K x 8 70ns 5v |
Data Sheet |
Negotiable |
|
||||
