Product Summary

The is62c256al-45tli is a low power,32,768 word by 8-bit CMOS static RAM. The is62c256al-45tli is fabricated using ISSI high-performance, low power CMOS technology. When CE is HIGH (deselected) , the is62c256al-45tli assumes a standby mode at which the power dissipation can be reduced down to 150 |ìW (typical) at CMOS input levels. The is62c256al-45tli is pin compatible with other 32Kx8 SRAMs in plastic SOP or TSOP (Type I) package.

Parametrics

is62c256al-45tli absolute maximum ratings: (1) Access time: 25 ns, 45 ns; (2) Low active power: 200 mW (typical) ; (3) Low standby power; (4) Fully static operation: no clock or refresh required; (5) TTL compatible inputs and outputs; (6) Single 5V power supply; (7) Lead-free available; (8) Industrial and Automotive temperatures available.

Features

is62c256al-45tli features: (1) Terminal Voltage with Respect to GND VTERM: -0.5 to +7V; (2) Storage Temperature: -65 to +150°C; (3) Power Dissipation Pt: 0.5W; (4) DC Output Current (LOW) IOUT: 20mA.

Diagrams

is62c256al-45tli block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

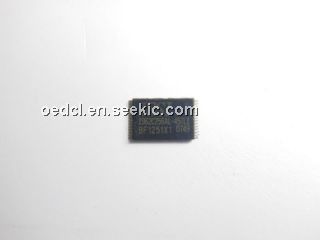

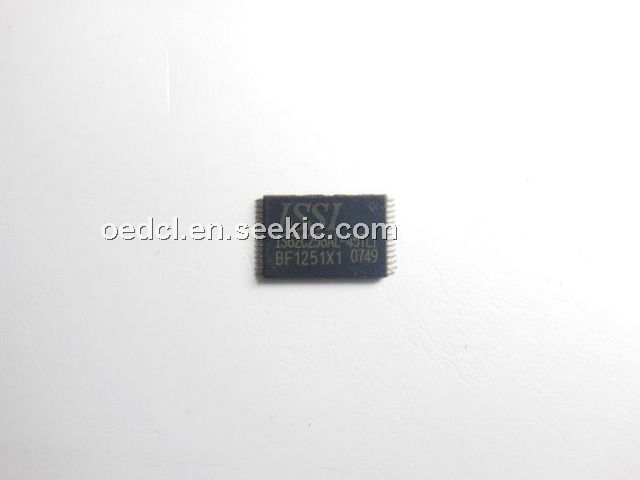

IS62C256AL-45TLI
IS62C256AL-45TLI
ISSI
SRAM 256K 32K x 8 45ns 5v Async SRAM 5v
Data Sheet
0-1: $0.80
1-25: $0.73
25-100: $0.64
100-500: $0.56
IS62C256AL-45TLI-TR
IS62C256AL-45TLI-TR
ISSI
SRAM 256K 32K x 8 45ns 5v Async SRAM 5v
Data Sheet
0-2000: $0.61
2000-6000: $0.59
6000-10000: $0.58
