Product Summary

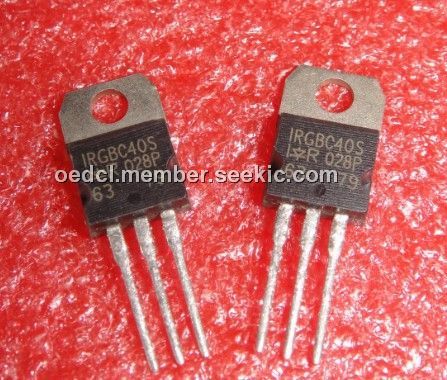

The IRGBC40S is an Insulated Gate Bipolar Transistor. The IRGBC40S from International Rectifier has higher usable current densitie than comparable bipolar transistor, while at the same time having simpler gate-drive requirements of the familiar power MOSFET. The IRGBC40S provides substantial benefits to a host of high-voltage, highcurrent applications.

Parametrics

IRGBC40S absolute maximum ratings: (1)VCES Collector-to-Emitter Voltage: 600 V; (2)IC ＠ TC = 25℃ Continuous Collector Current: 50A; (3)IC ＠ TC = 100℃ Continuous Collector Current: 31 A; (4)ICM Pulsed Collector Current: 240A; (5)ILM Clamped Inductive Load Current: 100A; (6)VGE Gate-to-Emitter Voltage: ±20 V; (7)EARV Reverse Voltage Avalanche Energy: 15 mJ; (8)PD ＠ TC = 25℃ Maximum Power Dissipation: 160 W; (9)PD ＠ TC = 100℃ Maximum Power Dissipation: 65W; (10)TJ Operating Junction and: -55 to +150℃; (11)TSTG Storage Temperature Range -55 to +150℃.

Features

IRGBC40S features: (1)Switching-loss rating includes all tail losses; (2)Optimized for line frequency operation ( to 400 Hz).

Diagrams

IRGBC40S pin connection
