IRF2807

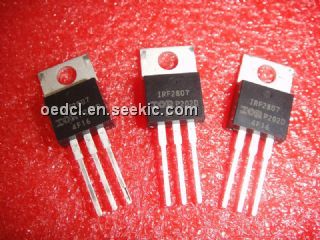

IRF2807, Power MOSFET, TO, 230W, 58A, International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.00 / Piece
1111 ~ 21111 :	0.80 / Piece

PartNumber:: IRF2807

Brand:: International Rectifier - IR | Pack: TO | D/C: 11+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-08

From Other Seller

Part Number:IRF2807
US $0.80 - 1.00
IRF2807STRLPBF

US $1.00 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

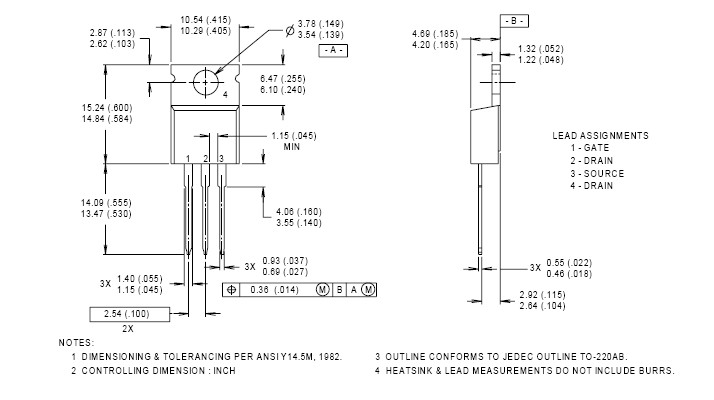

The IRF2807 is a Power MOSFET. Advanced HEXFET® Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

Parametrics

IRF2807 absolute maximum ratings: (1)Continuous Drain Current, VGS @ 10V: 82A; (2)Continuous Drain Current, VGS @ 10V: 58 A; (3)Pulsed Drain Current: 280A; (4)Power Dissipation: 230 W; (5)Linear Derating Factor: 1.5 W/℃; (6)Gate-to-Source Voltage: ± 20 V; (7)Avalanche Current: 43 A; (8)Repetitive Avalanche Energy: 23 mJ; (9)Peak Diode Recovery dv/dt: 5.9 V/ns; (10)Operating Junction and TSTG Storage Temperature Range: -55 to + 175 ℃.

Features

IRF2807 features: (1)Advanced Process Technology; (2)Ultra Low On-Resistance; (3)Dynamic dv/dt Rating; (4)175℃ Operating Temperature; (5)Fast Switching; (6)Fully Avalanche Rated.
