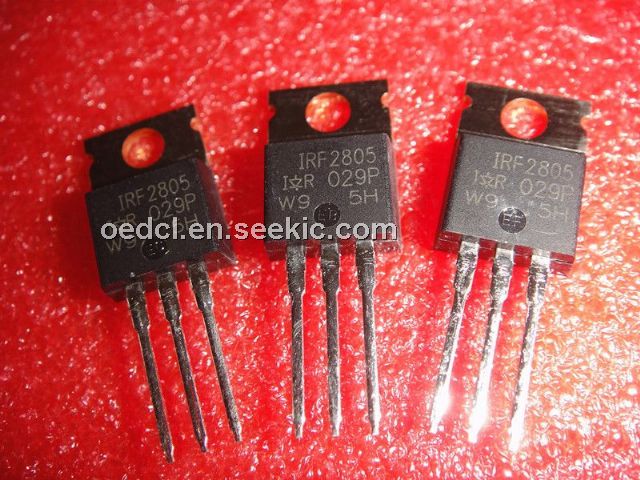

IRF2805

IRF2805, automotive MOSFET, TO, 175A, 330W, 450mJ, International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.00 / Piece
20 ~ 100 :	0.90 / Piece

PartNumber:: IRF2805

Brand:: International Rectifier - IR | Pack: TO | D/C: 07+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-08

From Other Seller

Part Number:IRF2805
US $0.90 - 1.00
Quantity:

piece

Product Summary

The IRF2805 is an automotive MOSFET. The IRF2805 utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175℃ junction operating temperature, fast switching speed and improved repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications. The applications of the IRF2805 are Climate Control, ABS, Electronic Braking, Windshield Wipers.

Parametrics

IRF2805 absolute maximum ratings: (1)Continuous Drain Current, VGS @ 10V (Silicon limited): 175A; (2)Continuous Drain Current, VGS @ 10V: 120A; (3)Continuous Drain Current, VGS @ 10V (Package limited): 75A; (4)Pulsed Drain Current: 700A; (5)Power Dissipation: 330W; (6)Linear Derating Factor: 2.2W/℃; (7)Gate-to-Source Voltage: ±20V; (8)Single Pulse Avalanche Energy: 450mJ; (9)Single Pulse Avalanche Energy Tested Value: 1220mJ; (10)Operating Junction and Storage Temperature Range: -55℃ to +175℃; (11)Soldering Temperature, for 10 seconds: 300℃ (1.6mm from case).

Features

IRF2805 features: (1)Advanced Process Technology; (2)Ultra Low On-Resistance; (3)175℃ Operating Temperature; (4)Fast Switching; (5)Repetitive Avalanche Allowed up to Tjmax.
