Product Summary

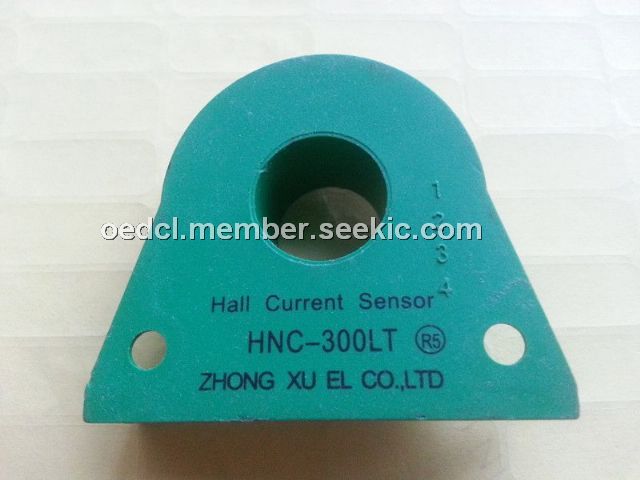

The HNC-300LT is a Hall Current Sensor. The applications of the HNC-300LT include AC variable speed drives and serve motor drives, Uninterruptible Power Supplies (UPS), Battery supplied applications, Power supplies for welding applications.
Parametrics
HNC-300LT absolute maximum ratings: (1)IPN Primary nominal r.m.s. current 300A; (2)IP Primary current measuring range: ±600A; (3)VC Supply voltage (±5 %): ±15V; (4)IC Current consumption: 15mA+(IPN/3000)mA; (5)Vd R.m.s. voltage for AC isolation test, 50Hz, 1mn: 2.5 kV; (6)R IS Isolation resistance @ 500 VDC＞500MW; (7)IOUT Output current @ ±IPN, R L = 40W, TA = 25℃: 100mA; (8)R L Load resistance :40W.
Features
HNC-300LT features: (1)Closed loop (compensated) multirange current sensor using the Hall effect; (2)High accuracy; (3)Very low temperature drift; (4)Wide frequency bandwidth; (5)High immunity to external interference.

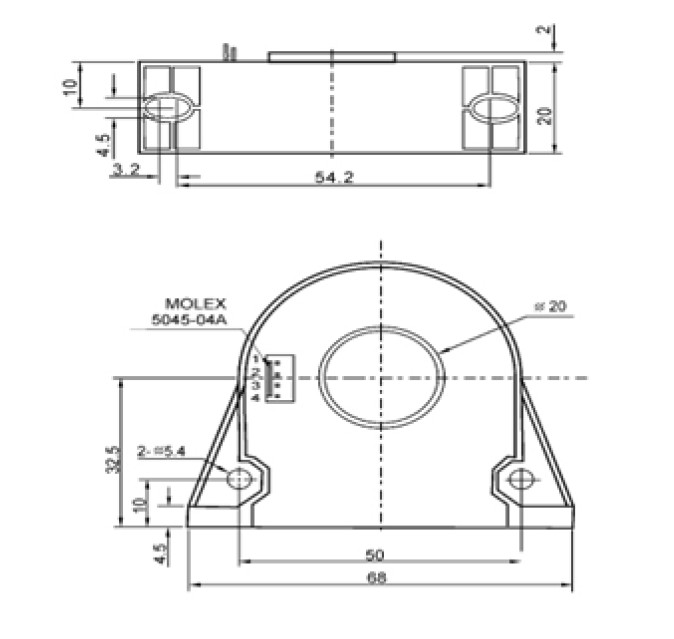

Diagrams
 |
