Product Summary

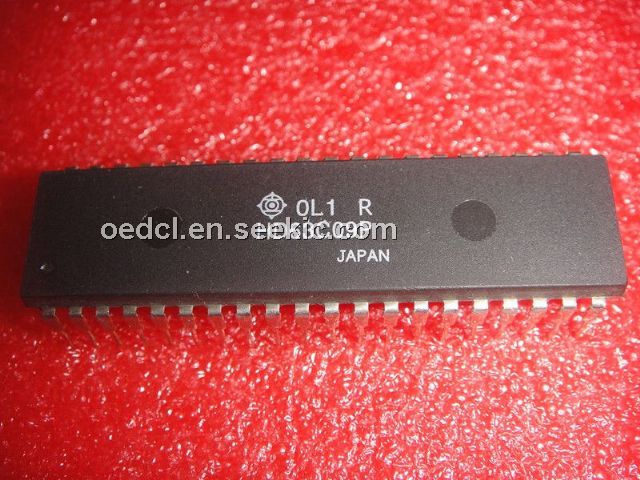

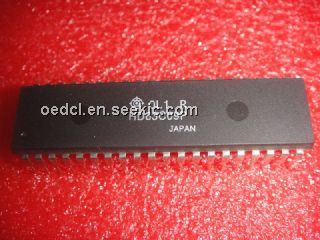

The HD63C09P is a 8-bit microporcessor. It has hardware and software features which make it an ideal processor for higher levellanguage execution or standard controller applications. The HD63C09P is complete CMOS device and its power dissipation is extremely low. Moreover, the SYNC and CWAI instruction makes low power application possible. Applications of the HD63C09P.

Parametrics

HD63C09P absolute maximum ratings: (1)supply voltage: -0.3V to 7.0V; (2)input voltage: -0.3V to 7.0V; (3)maximum output current: 5mA; (4)maximum total output current: 100mA; (5)operating temperature: -20 to 75℃; (6)storage temperature: -55 to 150℃

Features

HD63C09P features: (1)interfaces withe all HMCS6800 peripherals; (2)DMA transfer with no auto-refresh cycle; (3)softeware: object code compatible with the HD6809; (4)low power consumption mode(sleep mode); (5)on chip oscillator; (6)wide operation range.

Diagrams

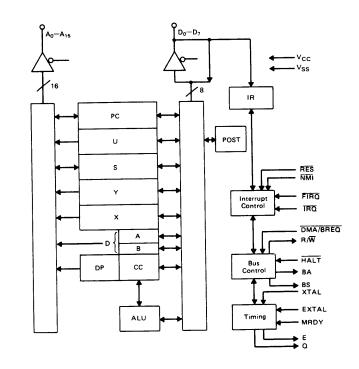

HD63C09P block diagram
