Product Summary
The FX6ASJ-3 is a mitsubishi Pch power mosfet. Applications are motor control, Lamp control, Solenoid control DC-DC converter, etc.
Parametrics
FX6ASJ-3 absolute maximum ratings: (1)Drain-source voltage: -150 V; (2)Gate-source voltage: ±20 V; (3)Drain current: -6 A; (4)Drain current (Pulsed): -24 A; (5)Avalanche drain current (Pulsed): -6 A; (6)Source current: -6 A; (7)Source current (Pulsed): -24 A; (8)Maximum power dissipation: 35 W; (9)Channel temperature: –55 to +150 °C; (10)Storage temperature: –55 to +150 °C; (11)Weight: 0.26 g.
Features
FX6ASJ-3 features: (1)4V DRIVE; (2)VDSS: –150V; (3)rDS (ON)(MAX): 0.53W; (4)ID: –6A; (5)Integrated Fast Recovery Diode (TYP.): 100ns.

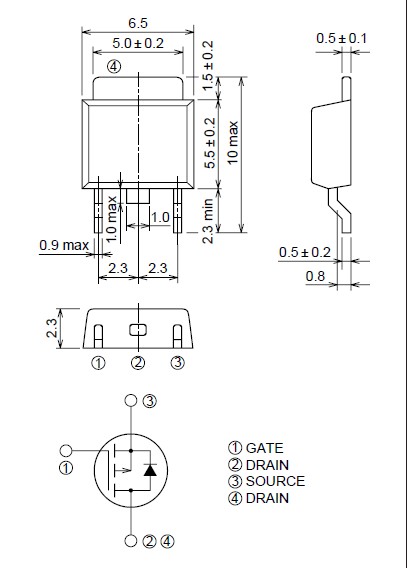

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FX6ASJ-3 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
