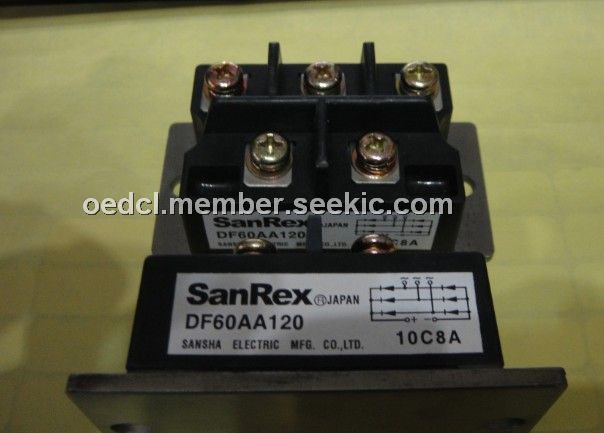

The DF60AA120 is a power diode module. The DF60AA120 is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The DF60AA120 is electrically isolated from semiconductor elements for simple heatsink construction Output DC current is 60Amp (Tc=112℃) Repetitive peak reverse voltage is up to 1200V.
Parametrics
DF60AA120 absolute maximum ratings: (1)VRRM Repetitive Peak Reverse Voltage: 1200V; (2)VRSM Non-Repetitive Peak Reverse Voltage: 1300V; (3)ID Output current (D.C.)Three phase. full wave. TC=112℃: 60 A; (4)IFSM Surge Forward Current 1 cycle, 50/60HZ, peak value, non-repetitive: 910/1000 A; (5)Tj Junction Temperature: -40 to150℃; (6)Tstg Storage Temperature: -40 to 125℃; (7)VISO Isolation Breakdown Voltage (R.M.S.)Main Terminal to case 1minute: 2500 V.
Features
DF60AA120 features: (1)TjMax=150℃; (2)Isolated Mounting Base; (3)High reliability by unique glass passivation.
