Product Summary
The CA1004 is a two-terminal, temperature compensated,micropower band-gap voltage reference. It provides afixed voltage for a wide range of input currents (10µA to 20mA). The high stability of the device is primarily the result of the low temperature coefficient Thin Film Resistor process and the tight output voltage tolerance is obtained by resistor Laser trimming at the wafer level. This gives the benefit of eliminating the need of external voltage adjustment.
Parametrics
CA1004 absolute maximum ratings: (1)Forward Current: 10mA; (2)Reverse Current: 30mA; (3)Operating Temperature Range: TO-92: 0℃ to +70℃, SOIC: 40℃ to +85℃; (4)Storage Temperature Range: TO-92: -65℃ to +150℃, SOIC: -65℃ to +150℃; (5)Lead Temperature (10 sec.): +300℃.
Features
CA1004 features: (1)Very Tight Initial Voltage Tolerance, 1004-1.2: ±5mV, 1004-2.5: ±10mV; (2)Very Low Operating Current, 1004-1.2: 10μA, 1004-2.5: 20μA; (3)Wide Operating Current Range: 10μA to 20mA; (4)Very Low Dynamic Impedence: 0.6 Max.

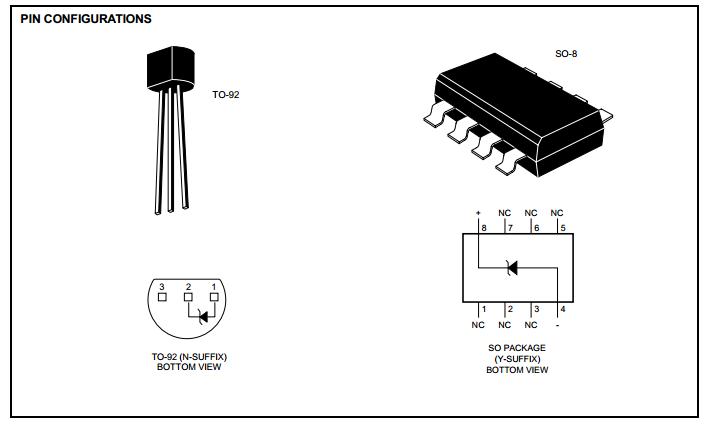

Diagrams
