Product Summary

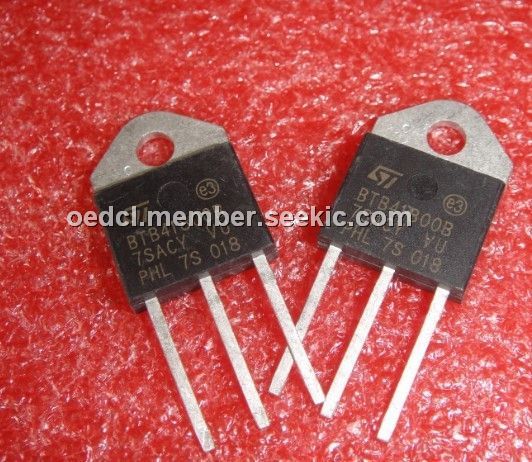

The BTB41800B is a triac. Available in high power packages, the BTB41800B is suitable for general purpose AC switching. The BTB41800B can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits or for phase control operation in light dimmers, motor speed controllers. Thanks to its clip assembly technique, the BTB41800B provides a superior performance in surge current handling capabilities.
Parametrics
BTB41800B absolute maximum ratings: (1)IT(RMS)RMS on-state current (full sine wave)RD91 / TOP3 Tc = 95℃ TOP Ins. Tc = 80℃ 40 A; (2)ITSM; (3)Non repetitive surge peak on-state current (full cycle, Tj initial = 25℃)F = 50 Hz t = 20 ms: 400 A, F = 60 Hz t = 16.7 ms: 420A; (4)I2t I2t Value for fusing tp = 10 ms: 880 A2s; (5)dI/dt Critical rate of rise of on-state current IG = 2 x IGT , tr ≤ 100 ns F = 120 Hz Tj = 125℃: 50 A/μs; (6)VDSM/VRSM Non repetitive surge peak off-state voltage tp = 10 ms Tj = 25℃ VDSM/VRSM: + 100 V; (7)IGM Peak gate current tp = 20 μs Tj = 125℃: 8 A; (8)PG(AV)Average gate power dissipation Tj = 125℃: 1 W; (9)Tstg Storage junction temperature range: - 40 to + 150℃; (10)Tj Operating junction temperature range: - 40 to + 125 ℃.
Features
BTB41800B features: (1)IT(RMS): 40 A; (2)VDRM/VRRM: 600 and 800 V; (3)IGT (Q1): 50 mA.

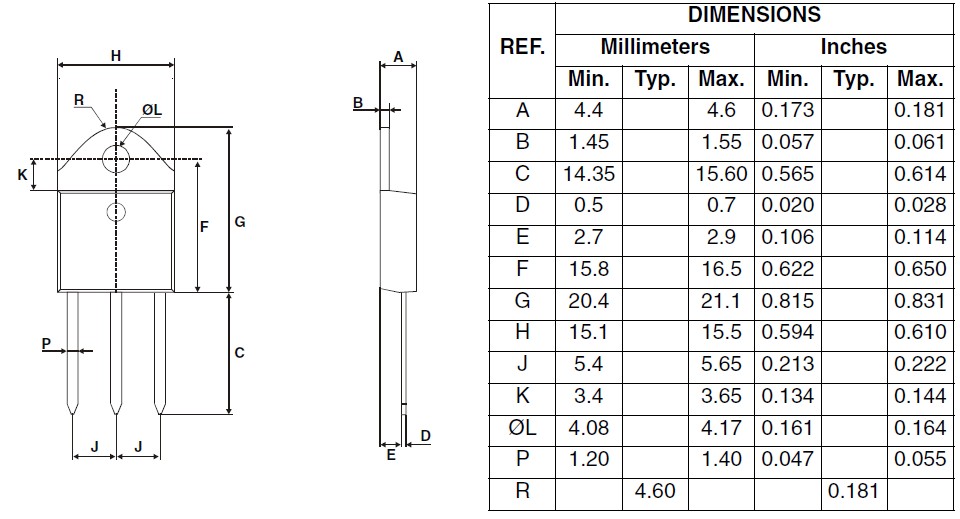

Diagrams
 |
