Product Summary

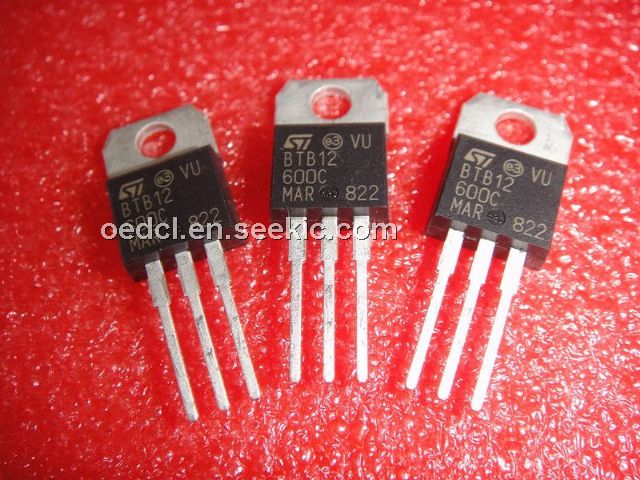

The btb12-600c is a 12A triac. The btb12-600c is suitable for general purpose AC switching. The btb12-600c can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in light dimmers, motor speed controllers.
Parametrics
btb12-600c absolute maximum ratings: (1) RMS on-state current (full sine wave) IT (RMS) : 12A (D2PAK/TO-220AB, Tc=105°C) , 12A (TO-220AB Ins. Tc=90°C) ; (2) Non repetitive surge peak on-state current (full cycle, Tj initial = 25°C) I2T: 120A (F=50Hz, t=20ms) , 126A (F=60Hz,t=16.7ms) ; (3) I2t Value for fusing I2t: 78A2S (tp=10ms) ; (4) Critical rate of rise of on-state current IG = 2 x IGT , tr≤100 ns dl/dt: 50A/μs (F=120Hz, Tj=125°C) ; (5) Non repetitive surge peak off-state voltage VDSM/VRSM: VDRM/VRRM +100V (tp=10ms, Tj=25°C) ; (6) Peak gate current IGM: 4A (tp=20μs, Tj=125°C) ; (7) Average gate power dissipation PG (AV) : 1W (Tj=125°C) ; (8) Storage junction temperature range Tstg: -40 to +150°C; (9) Operating junction temperature range Tj: -40 to +125°C.
Features
btb12-600c features: (1) IT (RMS) : 12A; (2) VDRM/VRRM: 600 and 800V; (3) IGT (Q1) : 5 to 50mA.

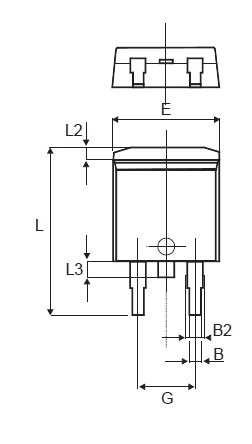

Diagrams
