Product Summary
The AT49LV8192AT-90TC is a 3-volt, 8-megabit Flash Memory organized as 512K words of 16 bits each. Manufactured with advanced nonvolatile CMOS technology, the AT49LV8192AT-90TC offers access times to 120 ns with power dissipation of just 67 mW at 2.7V read. When deselected, the CMOS standby current is less than 50μA.
Parametrics
AT49LV8192AT-90TC absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on RESET with Respect to Ground: -0.6V to +13.5V.
Features
AT49LV8192AT-90TC features: (1)Low Voltage Operation; (2)Fast Read Access Time - 120 ns; (3)Internal Erase/Program Control; (4)Sector Architecture; (5)Fast Sector Erase Time - 10 seconds; (6)Word-By-Word Programming - 30 ms/Word; (7)Hardware Data Protection; (8)DATA Polling For End Of Program Detection; (9)Low Power Dissipation; (10)Typical 10,000 Write Cycles.

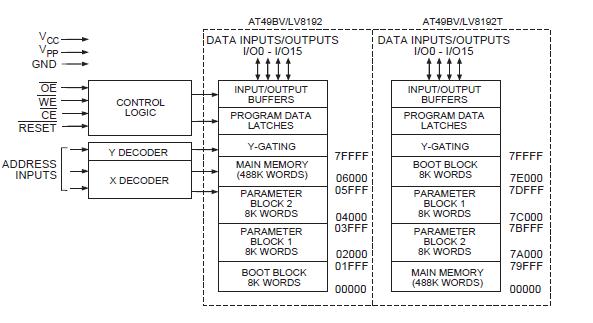

Diagrams
