Product Summary

The AM29LV400BT-120EC is an 4 Mbit, 3.0 volt-only Flash memory organized as 524,288 bytes or 262,144 words. The AM29LV400BT-120EC requires only a single 3.0 volt power supply for both read and write functions. The AM29LV400BT-120EC is entirely command set compatible with the JEDEC single-power-supply Flash standard.

Parametrics

AM29LV400BT-120EC absolute maximum ratings: (1) VCC (Supply Voltage) : 2.7 to 3.6V; (2) Operating Temperature, Commercial: 0 to +70°C, Industrial: -45 to +85°C, Extended: -55 to +125°C.

Features

AM29LV400BT-120EC features: (1) Single power supply operation; (2) Manufactured on 0.32μm process technology; (3) High performance; (4) Low power consumption (typical values at 5MHz) ; (5) Flexible sector architecture; (6) Unlock Bypass Program Command; (7) Top or bottom boot block configurations available; (8) Embedded Algorithms; (9) Tested to datasheet specifications at temperature; (10) Quality and reliability levels equivalent to standard packaged components.

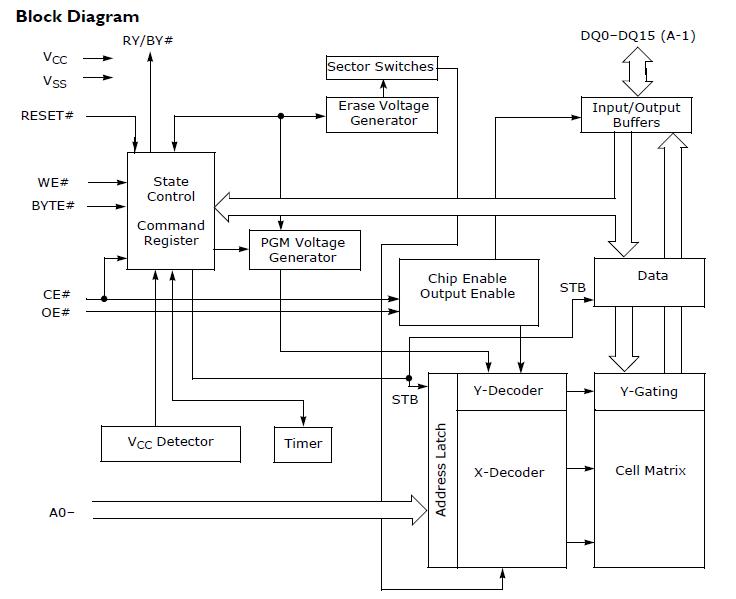

Diagrams

AM29LV400BT-120EC pin connection
